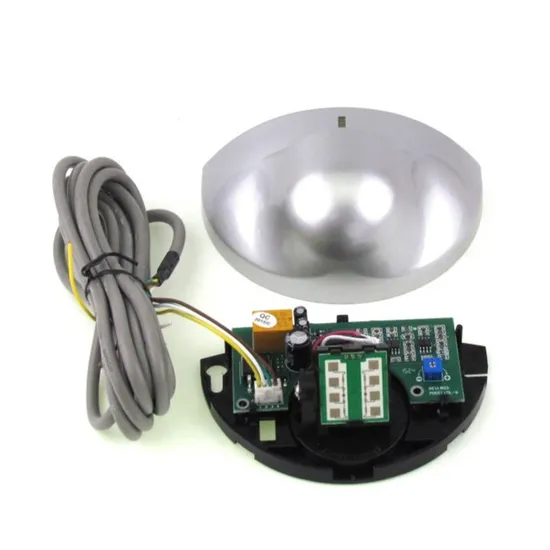

Microwave Automatic Door Open Close Sensor Hf-119

Product Description

Product Description
Microwave Automatic Door Open Close Sensor HF-119

Technology: Microwave & Microprocessor
EMC: 89/336EEC
Theory: Doppler data process
Transmit frequency: 10.525GHz
Transmit frequency density: < 5mW/CM2
Power voltage: 12-24V AC or DC
Power frequency: 50-60Hz
Power consumption: < 2W
Output: Standard relay output
Contact voltage max: 220VAC, 28VDC
Contact current max: 1A
Hold time: 1s
Radiation angle: Horizontal 120 degree, vertical 80 degree
Inductive area: 4m(w)X 3m(d)
Inductive area adjustment: Antenna angle adjustor
Inductive mode: Mobility
The minimum mobile speed: 5cm/s
Sensitivity adjustment: Adjust resistance screw 102
Temperature scope: -10 -- +55 degree
Material: ABS.
The payment term of sliding door sensor is T/T, L/C and so on.
Prce clause of automatic door sensor is FOB.
Our advantage and features:
1. With 12000 square meter factory about 50 workshop workers and 30 office workers.
2. More than 20 sets of advanced machines with more than ten years domestic trade experience and international trade experience.
3. Manufacture and supply good quality automatic doors
4. With ISO 9001 Certification and many others certifications
5. Excellent DC brushless motor, high wear-resistant qualities wheels and reasonable structure design makes it more stable, quiet, longer life
6. Our Service system is perfect
With many years experienc, we are very confident of our products, our main products including: Sliding door, swinging door, curved door...If you are interested in any of our products, please feel free to contact us.
About us:
After 10 years of development, Hongfa owns three series of products:
1. Automatic sliding door operators, interior door operators, telescopic door operators, automatic swing door operators, emergency evacuation automatic doors and curved door.
2. Automatic hospital doors, radiation-proof doors, access doors, manual hospital doors, swing hospital doors, medical protective equipments and pharmaceutical industrial doors.
3. Access control systems
We have been certified by ISO9001 and CE. Our products are widely used in hotels, banks, airports, commercial buildings, hospitals and factories. Hongfa brand products enjoy high reputation and are widely exported Europe, Middle east, Southeast Asia and other countries. More and more customers accept our products and fall in love with our products.
-over 10 years experience in this industry
-our company manufacture products according to buyer's demand, quantity or other related requirements
Guarantee and After-sale Service
1. We provide many years guarantee on non-movine parts for different product.
2. We provide lifetime support/maintenance for our customers.
3. Marketing service team promise timely speedy comperhensive service
4. Marketing service department carry out personnel responsibilities system
5. After delivery according to national regulation provide installation or installation guide
6. Product occur deformation during the warranty period, we will supply door to door service within 24 hours.
Why choose us?
Because we always do our best to provide professional service and good quality products.
Thank you for browsing our products. For more information, please feel free to contact us. We are alway ready to be on service for you with high-quality product and competitive price.

Technology	Microwave and microprocessor
Transmitter frequency	24.175GHz
Transmitter radiated power	<20dBm EIRP
Transmitter power density	<5mW/Cm 2
Maximum mounting height	3M
Tilt angles	0° to 90° vertical and -30° to +30° lateral
Max detection field	4m(W)×2m(D)
Detection mode	motion
Minimum speed	5cm/s(measured in the sensor axis)
Supply voltage	12V to 24V AC +30%/-10%; DC12V-30V
Mains frequency	50 to 60Hz
Power consumption	<2W(VA)
Max. contact voltage	42V AC-60VDC
Max.contact current	1A(resistive)
Max. switching power	30W(DC)/60VA(AC)
Hold time	2.5S
Temperature range	-20°C to +55°C
Degree of protection	IP54
Norm Confority	R & TTE 1999/5/EC; EMC 89/336/EEC
Material	ABS
Color of housing	Black
Dimensions	132*66*61MM
Length of cable	2.5m
