L3 Managed 4-Port 10g Base-Fx+ 48-Port 1000base-Tx Stack Switch

Product Description

Fibridge F2S900TX-484 series network switch is a high-performance Ethernet access Managed equipment developed by Beijing Fibridge. It has 48* 10/100/1000 Base-Tx interface and 4* 10Gigabit FX ports.
With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display.
The series is layer 3 switch, can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.
The device is built-in power module, you can choose 220V AC input or -36--72V input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +50ºC,10%~90(no condensation).
Product Features SupportIEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p storage-and-forward
MAC static configuration and dynamic learning, IEEE802.1AE Macsec security control
Support VLAN, GVRP, QinQ, voice VLAN
Support STP/RSTP/MSTP/EAPS/ERPS
SupportI GMPv1/2/3 and MLDv1/2 Snooping
Support IEEE1588 PT Pclock protocol
Support IPv4/IPv6
Support static routing, RIP, OSPF dynamic routing, VRRP
Support DHCP
Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL
Support QoS, flow classification, CAR flow limit/monitor/shaping, DSCP
Support safe visit control, prevent DDos support RADIUS/TRCACS+
Support port isolation, port security, IP+MAC+ port bunding
Support IEEE802.1X certificate
Support static/LACP link aggregation, UDLD, OAM, ISSU
SupportZTP zero-touch configuration, Web/Console/Telnet/SSH2.0
Support SNMP V1/V2.V3
Support TFTP upload and download management
Support RMON
Obtain network qualification certificate

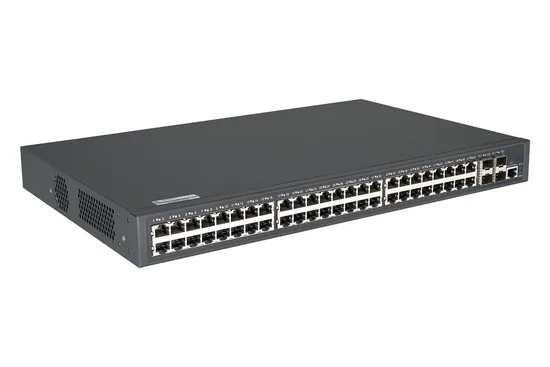

Detailed Photos

Product Parameters

Network Characteristics
Ethernet Protocol	Support 802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	Optical port: 1000MBase-FX, 10GBase-FX SM/MM, SC/FC/SFP Electrical port: 10/100/1000MBase-T(X) auto adaptive RJ45
VLAN	802.1q VLAN
MAC Addresses	32K
Jumbo Frame	Max 12K
Cache	64MB
Packet Buffer	336Gbps/3.36Tbps
Packet Forwarding Rate	148Mpps
Management	Web, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -10ºCto +50ºC Storage temperature: :-40ºC to 75ºC Working humidity:10%~90% RH No condensation Storage humidity: 5%~90% RH No condensation Altitude: 3000 meters
Power	AC 100-240V/50-60Hz embedded switch power DC-36~-72V external DC power
MTBF	≥100000 hours
Mechanical characteristics
Dimension	440×280×44mm
Weight	3.6kg
Power consumption	≤40W

Ordering Information

Model	Port	Management
F2S900TX-484	48*10/100/1000MBase-TX RJ45 4*10G SFP+	Web, SNMP V1/V2/V3, Console, Telnet

Business Terms
Price is FOB Beijing, 3 years warranty.
Price doesn't include SFP modules. About Fibridge
Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc.

---
