US$23,000.00-33,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Overall Dimension
8500*2500*3110
Transport Package
Nude Packing
Specification
CCC, ISO9000
Origin
Suizhou, Hubei, China
Production Capacity
150units/Month
Product Description

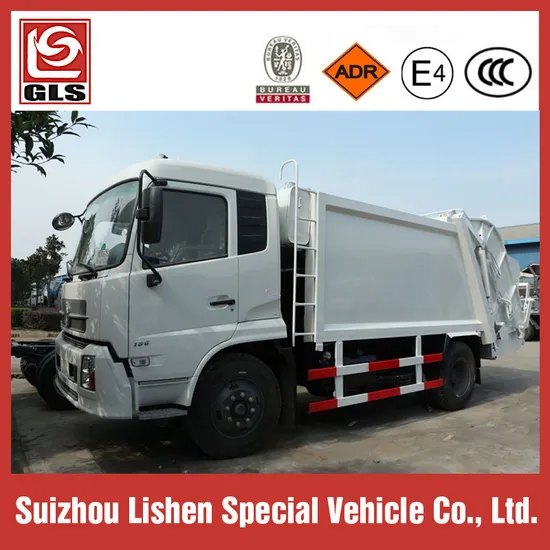

12 M3 Cbm Compactor Waste Collector Compressed Refuse Truck
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, dustcart truck, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
Chassic
Sinotruk Howo , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
Technical datails:
| Chassis Description |
| Cab | Single row non-longhead cab can turn over |
| Color | Optional |
| Allowable person in cab | 2/3 |
| Wheel base (mm) | 4500 |
| Number of axles | 2 |
| Front axle | 5000 |
| Rear axle | 10000 |
| Traction system | 4×2 |
| Tire specification | 10.00-20 |
| Tire quantity | 6+1 |
| Engine Description |
| Engine manufacture | YUCHAI Engines |
| Engine model | CY4102-C3F |
| Emission standard | Euro 3 |
| Exhaust/output | 5900ml/140kw |
| Horse power | 190hp |
| Up-parts Description |
| Loading Circulation Time (s) | 12-30 |
| Rubbish Discharging Time(s) | <30 |
| Oil Pressure(Mpa/kg) | 19.6/200 |
| Factual loading(kg) | 10000 |
| Compressed Proportion | 1:3/1:2 |
| Power of movement | Hydraulic pump |
| Standard Equipment | Equipped with hermetic dustbin, hydraulic system and operating system Automatic compress and uninstall, sewage can be collected by the dump tank. Pressure is large, leakproofness is good, operation is convenient and security is dependable |
There are Technique Parameters table above,if it didn't show,you can check it by computer or contact us!
We can offer diferent brand and volume capacity of the garbage compression truck!
Production details :
100 set garbage truck we export to Sri Lanka:
Our main products:
1. Oil Tank Truck
2. Refueling Truck
3.Water Tank Truck/ Water Sprinkler Truck
4.Sewage Suction Truck
5. Sanitation Truck
6.Fuel Tank Semi Trailer
7.Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
