High Efficiency Hammers Type Biomass Crusher Wood Sawdust Hammer Mill

US$14,000.00-110,000.00 1 Set (MOQ)

Basic Info.

Model NO.
530 680 1300
Automatic Grade
Automatic
Controlling Mode
CNC
Energy Saving
Energy Saving
Certification
CE, ISO
Warranty
2 Years
Customized
Customized
Condition
New
Color
Multi Color
After-sales Service
Full Life
Motor
75kw-355kw
Feed in Conveyor
Length as Requried
Discharge Conveyor
Length as Required
Blade
High Standard
Transport Package
Plywood Box
Specification
depend on model
Trademark
HX
Origin
China
HS Code
8465960000
Production Capacity
2000 Sets Per Year

Packaging & Delivery

Package Size
560.00cm * 190.00cm * 210.00cm
Package Gross Weight
13000.000kg

Product Description

HX series high efficiency hammer mill is mainly using for grinding different kind of biomass materials into powder size, such as wood chips, waste veneer, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.

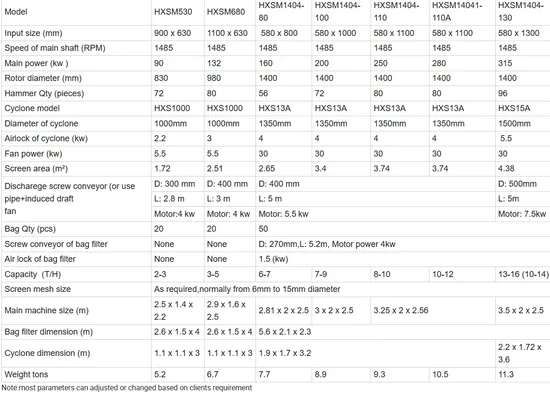

Parameters and models
Model HXSM530 HXSM680 HXSM1404-80 HXSM1404-100 HXSM1404-110 HXSM14041-110A HXSM1404-130
Input size (mm) 900 x 630 1100 x 630 580 x 800 580 x 1000 580 x 1100 580 x 1100 580 x 1300
Speed of main shaft (RPM) 1485 1485 1485 1485 1485 1485 1485
Main power (kw ) 90 132 160 200 250 280 315
Rotor diameter (mm) 830 980 1400 1400 1400 1400 1400
Hammer Qty (pieces) 72 80 56 72 80 80 96
Cyclone model HXS1000 HXS1000 HXS13A HXS13A HXS13A HXS13A HXS15A
Diameter of cyclone 1000mm 1000mm 1350mm 1350mm 1350mm 1350mm 1500mm
Airlock of cyclone (kw) 2.2 3 4 4 4 4 5.5
Fan power (kw) 5.5 5.5 30 30 30 30 30
Screen area (m²) 1.72 2.51 2.65 3.4 3.74 3.74 4.38
Discharege screw conveyor (or use pipe+induced draft
fan 		D: 300 mm D: 400 mm D: 400 mm D: 500mm
L: 2.8 m L: 3 m L: 5 m L: 5m
Motor:4 kw Motor: 4 kw Motor: 5.5 kw Motor: 7.5kw
Bag Qty (pcs) 20 20 50
Screw conveyor of bag filter None None D: 270mm,L: 5.2m, Motor power 4kw
Air lock of bag filter None None 1.5 (kw)
Capacity (T/H) 2-3 3-5 6-7 7-9 8-10 10-12 13-16 (10-14)
Screen mesh size As required,normally from 6mm to 15mm diameter
Main machine size (m) 2.5 x 1.4 x 2.2 2.9 x 1.6 x 2.5 2.81 x 2 x 2.5 3 x 2 x 2.5 3.25 x 2 x 2.56 3.5 x 2 x 2.5
Bag filter dimension (m) 2.6 x 1.5 x 4 2.6 x 1.5 x 4 5.6 x 2.1 x 2.3
Cyclone dimension (m) 1.1 x 1.1 x 3 1.1 x 1.1 x 3 1.9 x 1.7 x 3.2 2.2 x 1.72 x 3.6
Weight tons 5.2 6.7 7.7 8.9 9.3 10.5 11.3

Note:most parameters can adjusted or changed based on clients requirement
Main machine picture(Double rotors type)
Main Machine picture,single rotor type
Discharge sawdust
Key parts,hammer,screen,rotor
Brief drawing
Manufacturing
Working site
Clients visit and Exhibition
Our Company
Certificate
