US$50,000.00-80,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
HDYSJ-70*33/80*33/90*33
Product Type
Granulating Extruder
Assembly Structure
Separate Type Extruder
Engagement System
Intermeshing
Screw Channel Structure
Non Deep Screw
Computerized
Computerized
Transport Package
Exported Package
Production Capacity
80 Sets/Year
Product Description

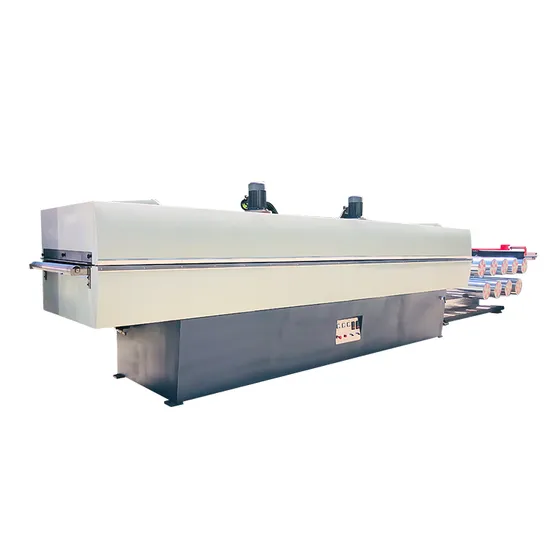

PP/PE monofilament extruder
Performance & Advantage:
Screw and barrel are made of nitride steel 38 CrMoAl with special hardening, has good corrosion resistance and wear resistance,longer life
AC Inverter & Motor can synchronize the entire extruder
Latest technology used for force the melt into the die very effectively
Take up small area
Easy operation
High output capacity
Technical data
| Item | HDYSJ-70*33 | HDYSJ-80*33 | HDYSJ-90*33 |
| Screw | 70mm | 80mm | 90mm |
| Fiber Diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
| Fiber Type | PP/PE/HDPE Monofilament Yarn for making rope or net |
| Ratio of L/D | 33 | 33 | 33 |
| Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
| Drawing Ratio | 4-10 | 4-10 | 4-10 |
| Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
| Power Consumption | 100KW/65KW | 130KW/80KW | 150KW/100KW |
| Max Output capacity | 1200KG/24H | 2000KG/24H | 3000KG/24H |
| Machine Weight | 10 Tons | 12 Tons | 15 Tons |
| Machine Dimension(L*W*H) | 20*3*2.5M | 23*3*2.5M | 27*3*2.5M |
Company info: Taian Haidai Rope Machinery Science Technology Co., Ltd. has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
Our service
Our certification:
Contact :Amy Shandong Haidai Intelligent Machinery Co.,ltd
Add: Nianhua NO.3 Road,Shengzhuang Industrial Park , Taian City, Shandong, China
Cell/WA: +86 17528939588
>>
