US$3,800.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Maximum Digging Height
2600 mm
Maximum Digging Depth
1450 mm
Max Digging Radius
2750 mm
Application
Construction Digging
Transport Package
Packed in Wooden Case
Specification
2600*880*1380-1980mm(L*W*H)
Production Capacity
50 Set/Sets Per Month
Product Description

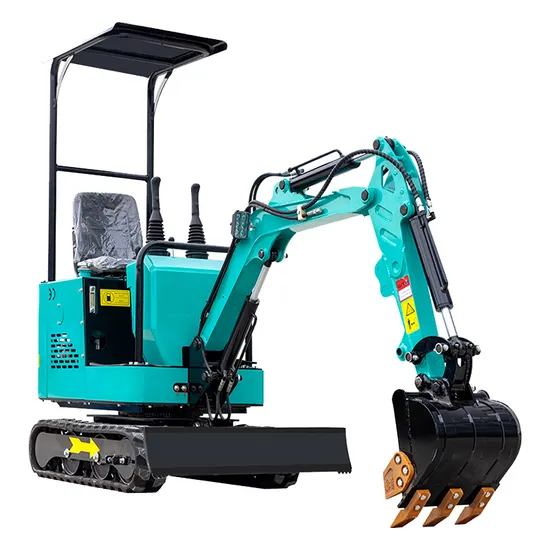

1 ton Excavator (PC10)
Detailed Photos
Product Parameters
Performance Parameter
|
Bucket capacity
| 0.025 m3
|
Engine model
| KOOP
|
Rated power
| 12 HP
|
Optional engine
| Briggs & Stratton
|
Operating weight
| 780 kg
|
Max.digging force
| 7.5 KN
|
Pump form
| Signle gear pump
|
Working pressure
| 14 Mpa
|
Swing speed
| 12 rpm
|
Travel speed
| 2.2 km/h
|
Gradeability
| 30°
|
Ground pressure
| 19 Kpa
|
Dimensions
|
Total width
| 880 mm
|
Total height
| 1380-1980 mm (Folding safety frame)
|
Total length
| 2600 mm
|
Min.ground clearance
| 100 mm
|
Track ground length
| 1140 mm
|
Operating Range
|
Max. Digging depith
| 1450 mm
|
Max. Vertical dgging depth
| 1375 mm
|
Max. Digging height
| 2600 mm
|
Max. Dumping height
| 1760 mm
|
Max. Digging distance
| 2750 mm
|
Min. Swing radius
| 1100 mm
|
Max. ground clearance of bulldozer
| 120 mm
|
Max. support depth of bulldozer
| 200 mm
|
Company Profile
Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
>>
