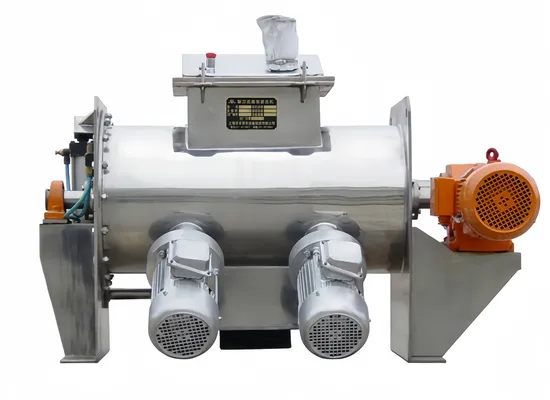

High Speed Horizontal Plough Shear Industrial Powder Ploughshare Mixer

Product Description

Company Profile
1.Working principle
When working, the ploughshare undergoes a circular motion, causing the material to be split into two directional streams by the ploughshare blade surface, forming a bidirectional material flow, and then crosses with the material diverted from the ploughshare on both sides to form convection. When the material passes through the high-speed flying knife, it is cut and scattered by the high-speed flying knife blades, achieving uniform mixing in a short period. This machine boasts high mixing precision, with no segregation occurring during mixing, particularly for materials prone to agglomeration, it can effectively disaggregate and disperse them.
2.Performance advantages and the characteristics
★Wtih the advantages of fast mixing, high precision, low energy consumption and smooth operation.
★Easy to install, operate and maintain.
★Multifunctional mixing equipment with strong adaptability and wide range of uses.
Main technical parameters:

Cylinder volume (L)	Loading factor	Flying knife motor power (KW)	Working pressure of discharge cylinder (MPa)	Working voltage (V)
2000	0.2~0.5	2.2	0.6	AC380
Flying knife speed (rpm)	Ploughshare speed (rpm)	Ploughshare motor power (KW)	Working pressure of shaft seal (MPa)	Overall dimensions (MM)
1440	63	18.5	<0.1	3023*1510*1568

Application areas Ploughshare mixers are widely used in various industries including chemical, lithium battery materials, coatings, dyes, pesticides, pharmaceuticals, food, feed, additives, refractory materials, new materials, electronic plastics, ceramics, fertilizers, metallurgy, mining, dry powder mortar, EPS, special building materials, and others for the mixing of powders with solids or powders with liquids. They are particularly suitable for the crushing and mixing processes of agglomerated materials and are suitable for low viscosity materials and fibrous materials. The ploughshare mixers can quickly break apart agglomerated fibers with high mixing precision.

---
