High Speed Plastic Disinfectant Fluid Bottle Blow Molding Machine

US$66,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ABLD90
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Application
Bottle
Max. Product Volume
60L
Blow Moulding Type
Extrusion Blow Moulding
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Apollo
Certificate
Ce
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
China
HS Code
8477301000
Production Capacity
4 Set/Sets Per Month

Product Description

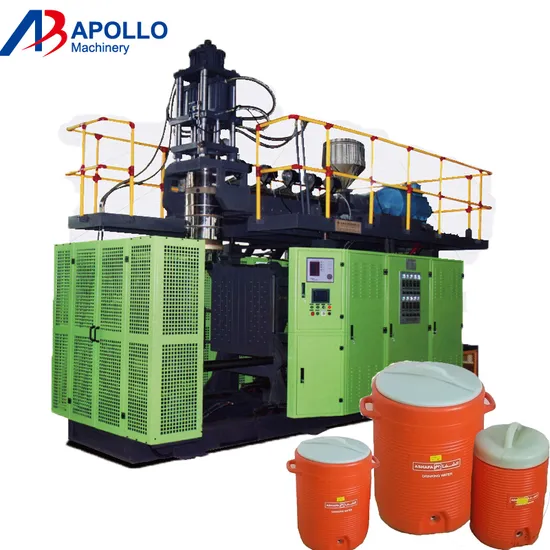

Tanks Extrusion Blow Molding Machine 60L:
ABLD90 Tanks Extrusion Blow Molding Machine is suitable for various kinds of plastic bottles in all shapes from 13L to 60L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years
The machine looks neat and nice
Perfect function with economic investment.

Max. Product volume

50 liters

Dry cycle

450pc/h

Screw diameter

90mm

Screw L/D ratio

25 L/D

Screw drive power

37 KW

Screw heating capacity

18 KW

No.of heating zone

4 zones

Output of HDPE

130 KG/H

Oil pump drive power

30 KW

Clamping force

260 KN

Max.size of mold

450-1000mm

Mold stroke

700X950mm

Max.die diameter

340mm

Die heating power

7.6 KW

Die heating segments

4 zones

Blowing pressure

0.8mpa

Air volume

1.0 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

90 L/MIN
