High Quality EDM Wire Cutting Machine 7745

Product Description

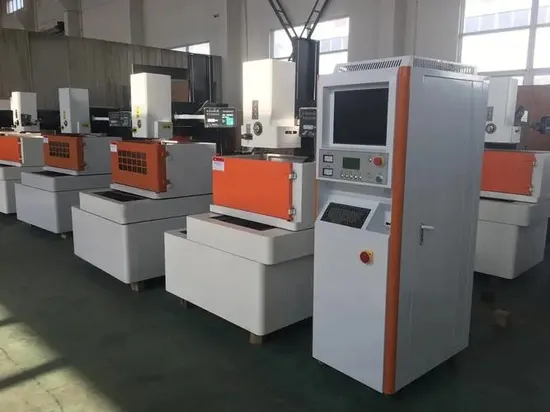

ZHENYUE CNC WIRE CUTTING MACHINE
Main Feature :
-The transmission system adopts high precision ball screw(precision lead screw),and quality alloy steel guide rail, steel column rolling,good abrasive resistance, large carrying capacity and high sensitivity.
-It adopts five-phase ten-beat electrical appliances control which further ensures good accuracy and fineness, stable and reliable machine tool running.
-The height of span can be freely changed, change span with taper and large taper thread frame structure, the processing scope is enlarged.
-Use AC, DC servo speed control to carry thread ,the constant tension device guarantees the steady carry and stable tension.
-Adopt microcomputer control, stable and relable performance, cutting on peculiar surface along the taper is realized. CRT color display of processing state, automated programming o f working program is realized, complete functions, self explanatory display. It is of simple and easy operation.
-It applies cutting special-purpose frequency converter to bring about the quicker machining speed with the more power energy saving and less noise.

DK7745	PARANETER	Unit
	Work Table Size	mm	500*630
	Work Table Stroke	mm	450*550
	Max.machining Thickness	mm	600
	Max.cutting Width	E	5°10°20°/200
	Machining Accuracy	mm	±0.01
	Best Surface Finishing	um	Ra≤2.5
	Max.material Removal	mm³/min	100
	Wire Electrode Diameter	mm	0.1-0.2
	working fluid		DX-1 DX-2
	Input Voltage	V	AC380V/220V
	Power consumption	KVA	0.8KVA
	Max.workpiece Weight	kg	400
	Machine Size(w*d*h)	mm	1700*1050*1500
	Machine Weight	kg	1300

Zhenyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhenyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
Ningbo Zhenyue Machinery Co.,Ltd.
ADD: Room 507-508, No.39 Lane 158, Huangcheng West Road, Ningbo China.
Zip Code:315000

---
