4-Door Facial Recognition Metal Smart Card Fingerprint Biometric RFID Door Access Control System

Product Description

Product Description

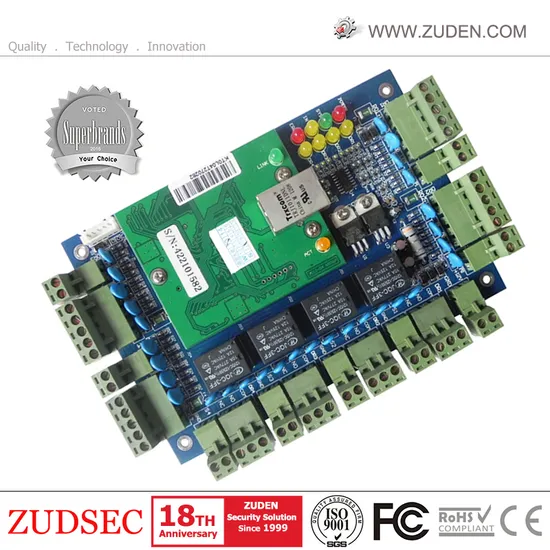

TCP/IP Smart Card Fingerprint Biometric RFID Door Access Control System
TCP/IP Access Control System: ZUDSEC ZD8000 Series Professional Smart Card Access Controller adopts 32 bit CPU and international advanced Hi-Speed operation circuit level and superior mass memory storage technology; More mature character of the 13th-generation products, plenty of project cases experience, make you at ease and safe; User friendly multi-language software without any professional knowledge, faster installation, Open data communication protocols, make the integrate system faster; enjoy top and more thoughtful technical support.
ZUDSEC's access control management System integrates and optimizes the automated control of access for a variety of client demands in the form of applications such as Premises Access Control, Visitor's Management etc.

Features - Conventional Function: offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.
- Professional function: for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
- All-in-one-card management system: nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.

Product Parameters

Parameter	Single Door Control Panel		2-Door Control Panel		4-Door Control Panel
Model	ZD8001-TCP/IP		ZD8002-TCP/IP		ZD8004-TCP/IP
Communication	TCP/IP 10M/100M adaptive		TCP/IP 10M/100M adaptive		TCP/IP 10M/100M adaptive
Door Controled	one door		two doors		four doors
QTY of Relay	1pc		2pcs		4pcs
QTY of Reader	2 readers		4 readers		4 pcs
Description	Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button		Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button		Control 4 doors, get in the door by swiping card, and get out door by button
Size of PCB board	160mm *106mm		160mm *106mm		218mm *106mm
Power Supply	12VDC 4-7A
Power Consumption of Circuit Board	Less than 100mA
Input Format of Reader	Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID , EM ,, Mifare one etc)
Door opening time extending setting	1-600 seconds(adjustable)
Max QTY of controller	No limit
Qty of users	20,000 Users
Qty of Event Buffers offline)	100,000 event buffers
Power interruption protection measure	High Speed Memory, Records never lose
Max Distance from Reader to Controller	100m (suggestion distance 80m)
Max Distance between Controllers	Depends on net coverage area
Alarm for long time door open, ilegal break in, intimidate	Yes
Fire and alarm linkage	If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Complsive open and close door at long time	Yes
Open door in remote distance	Yes
Inter block			Yes		Yes
Anti pass back and tail	Yes
Multi-card open door	Yes
Open long time at specified time	Yes
Electronic map	Yes
Urgency locking	Yes
First card unlocking	Yes
Unlock based on internal and external validation	Yes
Keypad(card+password, supper password)	Yes

* ZD8001-RS485: Packing box: 21.14.5*3.5cm; Weight: 0.25kg /pc
ZD8002-RS485: Packing box: 21.14.5*3.5cm; Weight: 0.28kg /pc
ZD-8004-TCP/IP Packing box: 21.14.5*3.5cm; Weight: 0.3kg /pc
