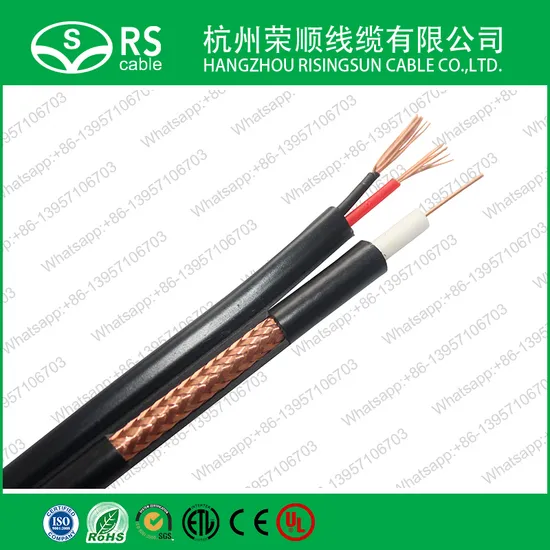

Factory Price High Quality 18AWG Rg59+2c Siamese Cable Camera Cable Premade Cable Power Cable CCTV Cable for Surveillance

Product Description

Application:
Low-power video and RF signal connections
Indoor CATV, CCTV system
Siamese cables give you the power to centralize your video and power distribution for your CCTV systems, and allows for more flexible placement of your security cameras.

Coaxial Cable-CCTV/Video		TYPE:	RG59 with 18AWG/2C
Construction
Item	Material		Diameter(mm)
Center Conductor	Bare Copper/CCS		0.81
Dielectric	Foam Polyethylene		3.66±0.05
Braid Coverage	Copper/CCA Wire Braiding 95%		8×16×0.12
Jacket	PVC ETL(CM/CMX) Rohs		6.0±0.1
2-18AWG
Center Conductor	Stranded Bare Copper/CCA		7×0.37±0.01
Dielectric	Soild PE(Red/Black)		1.90
Jacket	PVC ETL(CM/CMX) Rohs		5.3±0.3
Electrical Charateristics
Impedance(Ω)			75±3
Capacitance(pF/m)			52±2
Velocity of Propagation(%)			85.0
Shielding Effectiveness
5-1000MHZ(dB)			≥90%
Return Loss
5-1000MHZ(dB)			≥22
DCR Conductor of Inner RG59			33.8Ω/Km
DCR Conductor of 2-18AWG			21.6Ω/Km
Max Operating Voltage			3KVMS
Operating Temp Range			-20ºC to 60ºC(PVC)
Attenuation @68°F.(20 ºC )
@Frequency(Mhz)	Max Attenuation(dB/100ft)		Max Attenuation(dB/100m)
1	0.45		1.48
10	0.90		2.95
50	1.90		6.23
100	3.20		10.49
200	4.00		13.11
400	4.90		16.07
700	8.60		28.20
900	9.80		32.13
1000	10.70		35.08

Packing & Shipping
(1) Packing Lengths:3m/5m/10m/20m/50m/100m/200m/305m/500m/1000m etc
(2) Inner Packing:Polybag,Blister,Shrink Wrap,Wooden reel,Plastic reel,or Cardboard drum
(3) Outer Packing:Carton box,Pull out box,Pallet available
(4) Other packing available according to clients' request
(5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
A: Our factory is located inLin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo

---
