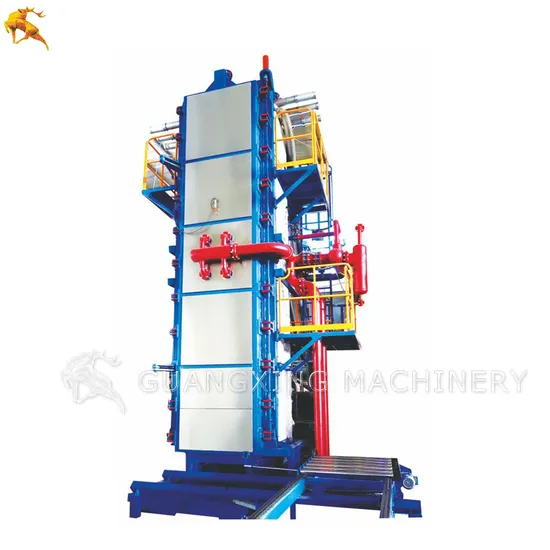

Polystyrene Foam Block Sheet Making Machine EPS Foam Panel Board Production Line Block Molding Machine

Product Description

1) Multi-Functional
The machine is quipped with Synchronous transmission with wide adjusting range for machine multipurpose application .

2) Best Quality
Welded by high quality profile steel with age heating treatment to ensure the machine high strength & without deformation.It can endure the expansive force of high density products.

3) Easy Operation
Adopted PLC Controller (Programmable Logic Controller) and Touch Screen to realize automatic circulation of mould opening & closing, feeding, heating, heat preservation, air/vacuum cooling, demoulding and releasing.

4) Long-time Used
Adopted special aluminum alloy in machine cavity ,high thermal conductivity ,good extension and long lifetime.

5) Advanced Technology
Using overseas advanced through heat molding technique and variable pressure blower for material feeding and cooling.

6) Excellent Performance
Strong penetrating power leads to good bonding effect
EPS block with less steam,fast forming,low moisture content, guaranteeing products inside and outside the same.

Product Parameters

Adjustable to produce different width EPS block for EPS panel ,EPS sandwich panel, EPS foam block in different shapes.

Item	Unit	PSB-A600	PSB-A800
Net Internal Size Of Mould Chamber	mm	6120x1240x630	8160x1250x630
Adjustable Size of Mould Chamber	mm	6120x980x630	8160x980x630
Volume of Mould Chamber	m³	3.77-4.78	5.0-6.37
Product Density/Specific Weight	Kg/ m³	4.5-30	4.5-30
Production Efficiency( Standard Condition)	Piece/h	6-10	6-10
Steam Pressure	Mpa	0.6-0.8	0.6-0.8
Compressed Air Inlet Diameter	Mm	65	65
Steam Inlet Diameter	Mm	150	150
Total Power of Installed Machine	Kw	20.5	20.5
Max. External Dimension	Mm	7700x2150x3270	9700x2190x3270
Installed Weight	Kg	11000	13000
Power Supply	V	380V or 220V alternated

Installation Instructions
Company Profile

Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China. The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO 9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Packaging & Shipping

FAQ

Q: Where is the factory located? A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there. Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during trail testing.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3 month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1 Sets

---
