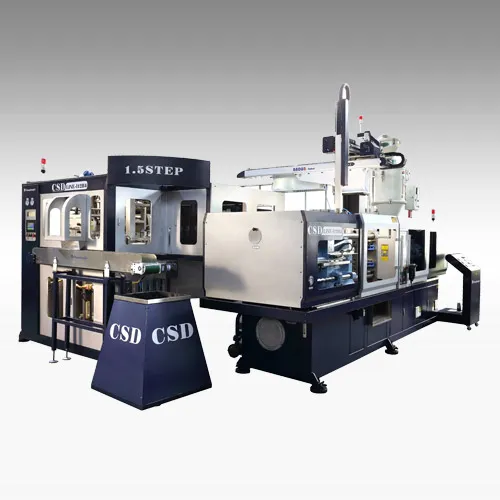

1.5 Step Injection and Blowing Integrated Machine- Injection Parts

Product Description

CSD-FG SERIES high precision, oil free, servo, and direct pressure injection molding machine for medical and food.
Advantage:
1. Environmental protection: oil free for the equipment surface
2. High speed: single cylinder injection
3. Energy saving: servo double closed loop system
4. Characteristic:straight mode of mold opening and closing
5. Precision: linear guide used in injection station, for open and close mode
6. Advantage: large mold opening distance
7. Control: european famous brand is adopted, temperature control

			CSD-50S-FG		CSD-90S-FG		CSD-130S-FG		CSD-170S-FG		CSD-210S-FG		CSD-250S-FG		CSD-300S-FG		CSD-420S-FG		CSD-550S-FG		CSD-720S-FG
			A	B	A	B	A	B	A	B	A	B	A	B	A	B	A	B	A	B	A	B
injection part	SCREW DIMETER	mm	30	33	35	38	40	43	45	50	50	56	57	63	65	70	75	80	80	90	90	100
	SCREW L/D RATIO	L/D	22	20	22	20	22	20	22	21	22	21	22	21	22	21	22	20	22	20	22	20
	SHOT VOLUME(THEORETICAL)	cm³	92	111	150	177	244	278	358	441	471	590	689	841	912	1058	1590	1808	1929	2443	2830	3495
	SHOT WEIGHT	g	84	101	137	161	222	253	325	401	429	537	627	765	830	963	1446	1645	1755	2222	2576	3180
		oz	2.9	3.5	4.8	5.7	7.8	8.9	11.4	15.4	15	18.8	21.9	26.8	29	33.7	51	58	62	78.3	91	112
	INJECTION PRESSURE	MPa	200	175	210	186	192	133	192	156	200	160	182	150	187	162	185	165	185	168	188	168
	SCREW SPEED	g/s	63	76	86	101	112	130	141	175	175	219	206	252	267	312	358	407	407	515	515	636
	SCREW SPEED	r/min	0~220		0~220		0~200		0~200		0~200		0~180		0~180		0~160		0~150		0~130
	PLASTICIZING CAPACITY	g/s	8.9	10.6	11.8	16.3	17.7	22.1	25	32	32	42.8	41.1	53.3	56.8	67.7	71	83	77.8	105	91	119.3
clamping part	CLAMPING FORCE	kN	500		900		1300		1700		2100		2500		3000		4200		5500		7200
	OPEN STROKE	mm	420		480		510		660		720		770		820		800		880		950
	SPACE BETWEET TIE BARS(WXH)	mm	330 x 330		380 x 380		420 x 420		480 x 480		540 x 540		600 x 600		690 x 690		750 x 820		940 x 870		1000x 980
	MOULD THICKNESS	mm	150~570		180~660		200~710		220~880		260~980		280~1050		450~1250		400~1700		450~1880		460~2150
	EJECTOR FORCE	kN	25		30		40		50		60		70		85		130		160		180
	EJECTOR STROKE	mm	80		100		130		180		200		200		230		250		280		300
	EJECTOR NUMBER	n	1		5		5		5		5		9		13		17		21		21
others	HEATER POWER	kW	7.2		8.5		9.3		11.6		18		26		35		32		50		58
	PUMP MOTOR POWER	kW	7.5		11		15		18.5		22		30		37		55		64		80
	MAX PUMP PRESSURE	MPa	16		16		16		16		16		16		16		16		16		16
	MACHINE DIMENSION(LxWxH)	Mm	3.9 X 1.1 X 1.5		4.3X 1.2 X 1.7		4.8 X 1.3 X 1.7		5.56X1.48X1.72		6.12 X 1.47 X 1.83		6.58X1.68X2.0		7.0X2.0X2.3		7.8X22.5X2.48		8.3X2.43X2.52		8.8X2.53X2.58
	MACHINE WEIGHT	T	3		3.8		4.5		6		7.2		9.2		11.3		18.5		23.5		32
	OIL TANK CAPACITY	cm³	300		350		400		500		600		700		900		900		1000		1100

About us Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company. CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China. CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients. CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.

---
