Steel Door Frame Roll Forming Machine Door Frame Forming Machine Rolling Door Frame Machine

Product Description

Product Description

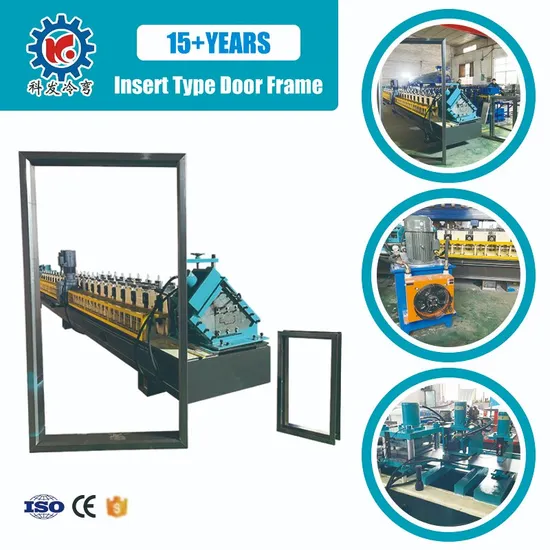

Door Frame Cold Roll Forming Machine


Product Parameters

Decoiler :	Manual decoiler	* Hydraulic decoiler (Optional)
Forming station :	According to your profile drawings
Main machine motor brand :	Shanghai Lichao (Famouse Brand)	* Siemens (Optional)
Driving system :	Chain drive or Gear drive	* Gearbox drive (Optional)
Machine structure:	Cantilever type	* Forged Iron station (Optional)
Forming speed :	10-20 (M/MIN)	* Or according to your profile drawings
Rollers' material :	Cr12	* SKD-11 (Optional)
Cutting system :	Post-cutting	* Pre-cutting (Optional)
Frequency changer brand :	Yaskawa	* Siemens (Optional)
PLC brand :	Panasonic	* Siemens (Optional)
Power supply :	380V 50Hz 3ph	* Or according to your requirment
Machine color :	Industrial blue	* Or according to your requirment

Standard Decoiler
De-Coiler is provided to load Raw material coil on its bridge& Hold the coil and also in loop area store the row material before in process. It will hold tighten sheet coil & decoiling for roofing line smoothly.
Entry Guides
1. With several support rollers, to feed the material more smoothly
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the material surface from being damaged, and feed the material more easily and quickly
3. Can be With hand wheels to adjust the feeding size, more conveniently.
4. Optional With manual cutters to cut feed material more easily.
Roll Forming
Consist pairs of contoured roll tools. While the coil stock is passing through succession contoured rolls the material bends to its desired shape, after final shape is achieved profile straighter gives straightness to outgoing profile.
1.Rolling shaft :40Cr STEEL,Tempering treatment to prevent deformed and improve hardness,Shaft diameter: 75mm
2.Roller:Cr12 steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life.
Hydraulic Cutting
Work type:Hydraulic cutting Driving method:By pillar type cylinder Cutting device structure:Guide pillar type Cutter material:
GB-Cr12 with heat treatment Cutting length tolerance:±1mm/3m Cutting feature: Steady and safe working condition Oil tube and wires
connection All the tubes and wires will be marked by the numbers or letters,So it will be very easy to connect for the
unprofessional client.
PLC & CONTROL PANELS
Frequency brand:Delta,PLC brand:Delta
Screen type:Touch screen, also have buttons on the panel
Screen language:English/Chinese/Spanish
Low pressure electric part:Schneide brand
Encode:Omron brand
Remark:Support multi orders input,ensure the machine can work continuously according to different request without stop.
All the electrical parts are branded with high quality, it can be fixed easily if damaged.
Hydraulic station
Hydraulic station motor:11KW
Hydraulic oil:46# hydraulic oil
Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve.
Machine detail diagram

Machine parts processing


Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.

---
