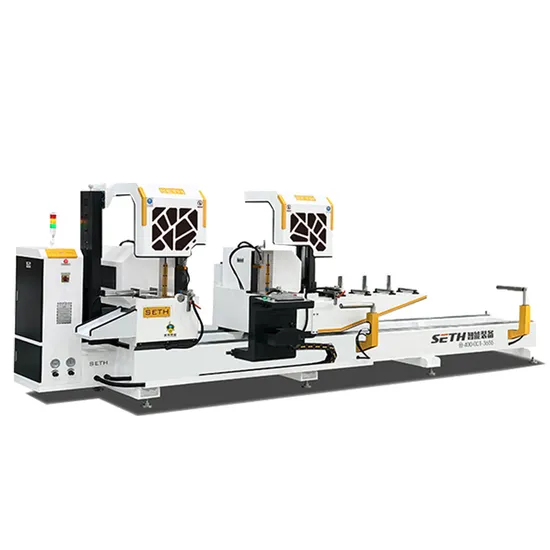

CNC Aluminum Profile Professional Cutting Machine

Product Description

Power supply	380v 50hz
Saw head motor	2× 3KW/3000r/min
Working pressure	0.6~ 0.8MPa
C Air consumption	60L/min
Cutting length	Max5000mm min 280mm(Short cutting function is the shortest 200mm)
Cutting width	Max 150mm
Max. Cutting slope	45°150×170mm 90°150×345mm
Max. square tube cutting	150×200mm
Cutting angle	45degree 90degree
Feeding speed	continuously viable 0-4m/min
Saw blade specification	ø500 × ø30 × 4.4× Z120
dimension	6550× 1300× 1800 mm
weight	2000kgs
Accuracy of repeated fixed length	≤ 0.1mm
Allowance of section cutting angle	± 3'
Flatness of cutting profile	≤ 0.02m
Roughness of cutting profile	Ra12.5μm

Features of equipment:
1. Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows, curtain wall materials.
2. Operation without skilled workers, solve the factory recruitment difficulties, label printing function, error prevention function: profile error beyond the range of no cutting.
3. High-precision, integrated casting workbench, integrated spindle directly connected motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.
4. Supports multiple data import modes:Internet, LAN, U disk, Bluetooth, manual input, etc. Can realize the market common optimization software data docking, New gel, changfeng, chuangying
5. Environmental protection function, unique chip removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
6.It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop, and equipped with movable profile bracket.
7. The latest arc cutting technology, sawing section is safer, faster and more reliable.
