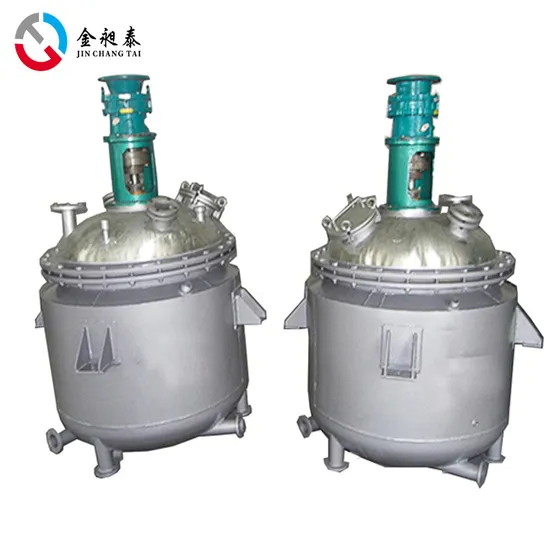

Nhz5l-3000L Low Price Hot Sale Acrylic Resin Reactor

Product Description

1 )JCT machinery and Equipment Co., Ltd. is a professional manufacturer specializing in design, production, installation and commissioning. It has more than 20 years of design and production experience, advanced design, well made,the products are sold to all over the world.. 2)The grafted adhesive production line designed by JCT is communicated with a number of experienced grafted glue technology engineers. After design, the production line has high production efficiency and low production cost. It can realize semi-automatic or automatic control according to different customer requirements.
production line equipment
Reaction kettle, condenser, dispersing kettle, filter, filling machine, steam furnace, water cooling system, material pump, etc.

Model	Chamber Volum(L)		Drive motor power (KW)	Mixing Speed (rpm)	Discharge mode			Heating
	Full volume	Feeding amount		Paddle fast / slow paddle	Optional parameters			Optional parameters
NHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
NHZ-20	20	12	3-5.5	63/42
NHZ-50	50	30	4-7.5	63/42
NHZ-100	100	60	5.5-7.5	43/29
NHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
NHZ-300	300	180	11-18.5	43/29
NHZ-500	500	300	18.5-30	43/29
NHZ-1000	1000	600	22-55	32/22
NHZ-1500	1500	900	30-90	32/22
NHZ-2000	2000	1200	45-110	32/22
NHZ-3000	3000	1800	55-130	33/22
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Inverter for frequency control if necessory.

Design capacity 50-30000L(volume in accordance with the requirements of the design)
Reaction temperature room temperature-300ºC
Reaction pressure -0.1~0.6Mpa
Equipment materail SUS304 stainless steel,SUS321 stainless steel ,SUS316,Q235-B carbon steel
Stirring form --anchor paddle ,block ,ribbon ,turbine tybe,a dispersing disc,modular like,
Heating methods electric heating ,steam heating ,heated in water
Heat transfer medium oil,steam,hot water,electricity and heating
Heat transfer structure jacket,outer half -tube,inner coil type
Production process 1).All kinds of raw materials are prepared according to the technical formula.
2)Add butanone, xylene and other solvents to the reaction kettle to stir and stir.
3)Add chloroprene rubber, continue heating heating, high speed;
4)After the rubber is dissolved, the other raw materials are added to heat up and react. 5)When the viscosity is detected and the requirements are reached, 6)Cool down the cooling water to the specified temperature. 7)Pump the finished product into the high speed dispersion kettle. 8)Other raw materials such as resin are added to adjust the viscosity and solid content. 9)After sampling and testing, the cooling is cooled and the material is packed
about us
FAQ
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.

---
