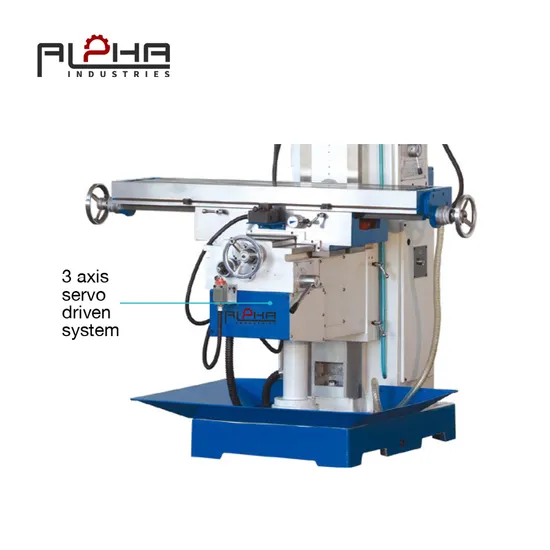

High Precision Mh6330 CNC Milling Machine with High Quality Chip Tray

Product Description

STANDARD ACCESSORIES
• Drill chuck/Drawbar/Work lamp/Milling vice
• Coolant system/chip tray
• X-axis mechanical power feed (MH6332)
• Y-axis mechanical power feed (MH6332)
• Toolbox&tools
• Operation manual/Quality certificate
• Packinglist

OPTIONAL ACCESSORIES
• DRO
• Vise
• Milling collet chuck
• Rotary table
• Dividing head
• 58 pcs clamping kits
• Keyless drill chuck
Product Parameters

SPECIFICATIONS
Model No.	Unit	MH6332B	MH6332C	MH6332Z	MH6330	MH6330A
table size	mm	1120×260	1270×320	1320×320	1270×300	1370×300
table travel(X,Y,Z)	mm	600/270/300	780/300/380	800(750)/300	720/300/400	820/300/400
number/width/distance of T-slot	mm	3/14/63	5/14/70	5/14/70	3/14/80
arm travel	mm	-			450
spindle taper		ISO40			3HP:R8 or ISO30; 5HP:ISO40(V,ISO40(H)
table feed (X,Y,Z)		-	-	-	variable
distance between spindle nose and table surface	mm	100-400	150-500	150-550	75-475
distance between spindle axis and ram surface	mm	-	-	-	200
distance between spindle axis and column surface	mm	100-650	150-550	200-780	-
spindle travel	mm	127	127	120	-
spindle speed range	r/min	48-130	70-3620(V) 60-1350(H)	90-2000(V) 40-1300(H)	43-3225 65-4660(16 steps) 12 steps 35-1500
spindle motor pOwer	kW	2.2	3.7(V)2.2(H)	2.2(V/H)	-
main motor pOwer					3HP or 5HP
overall dimension	mm	1710×1480×1000	1720×1520×2225	1710×1720×2330	1720×1680×2350	1820×1680×2350
G.W.	kg	1350	1650	2000	1650	1700

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
