China Supplier Hand Operated Hoisting Equipment Manual Lever Hoist 6t Chain Block Lifter

Product Description

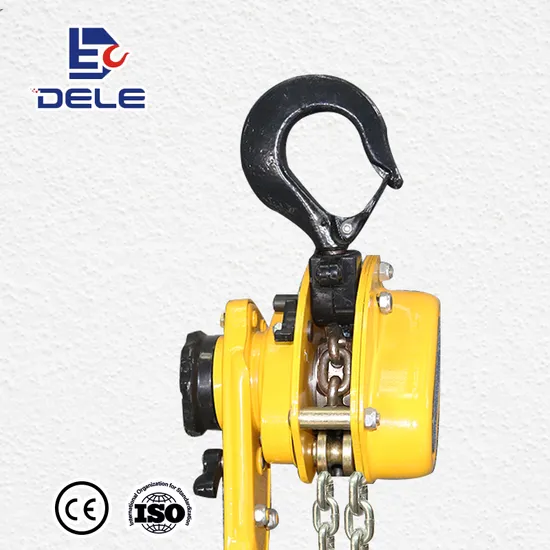

Manual Lever Hoist ,Model VA type
The VA series lever hoist can be widely used for equipment installation, lifting and tightening goods , dragging loads in
factories,mines,construction sites,power plants,boat manufacturing etc. it is an ideal device especially in narrow space,open air and over-head places for pulling and stretching at angle.
FEATURES
Make by Standard:EN 13157
1.Compact , light yet durable
2.Double-pawl brake system desigend for safety and reliabilty.
3.Heat treated steel plates , gears and shafte for enhanced strength;
Forgeg upper , lower hooks with forged steel safety latches;
High Tensile Alloy Steel Chain
4.Free-wheeling mechanism for quick chain adjust ments.
5.Weston style automatic load brake with doble pawl load reduction.
6.360°rotating handle of east of use in confined space.
7.Ideling mechanism to allow fast adjustment of load chain.
8.Safety factor:4 to 1.
9.Fatigue tested at 1.5 times of working load limit to 2000 cycles.

model		VA-0.75A	VA-1.5A	VA-3A	VA-6A	VA-9A
capacity(t)		0.75	1.5	3	6	9
standard lift(m)		1.5	1.5	1.5	1.5	1.5
Running test load(t)		1.125	2.25	4.5	9	13.5
Effort required at capacity(N)		140	220	320	340	360
No. of coluns of load chain		1	1	1	2	3
Load chain dia.(mm)		6	8	10	10	10
Dimensions(mm)	A	145	175	203	203	203
	B	86	100	118	118	118
	C	122	130	150	205	316
	D	37	45	50	64	85
	H	320	380	480	620	700
	L	285	370	410	410	410
	K	30	36	40	50	58
Weight(kg)		7.5	11.5	21	31.5	47
Packing measurements(L×W×H)(cm)		35.5×14×16.5	46.5×15.5×19	51×19×21.5	53×22×21.5	82×32×21.5
Extra weight per meter of extra lift(kg)		0.8	1.4	2.2	4.4	6.6

Details Images
The Quality comparison of spare parts
Customized Service
Production process
Certifications
Payment
Our Service
FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.

---
