Host Sale Nyhzs Portable Concrete Mixer Philippines

Product Description

Product Description

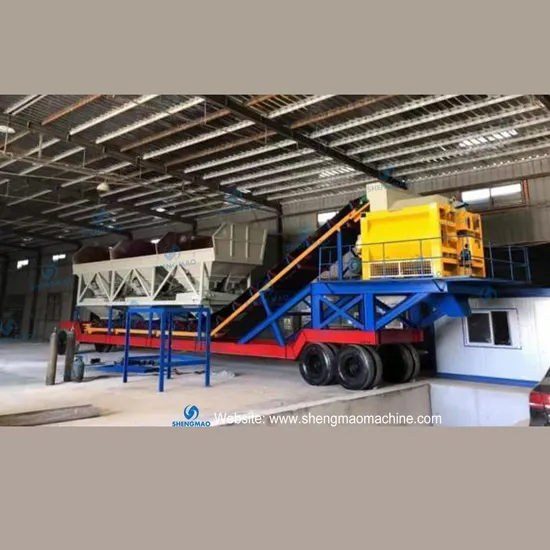

NYHZS type Mobile concrete batching plant

we produce concrete batching plant with good quality&competitive price for more than 20 years, mobile concrete batching plant is our feature product.
Features: 1. No need to make concrete foundation, but need concrete floor
2. east to install. We can usually finish the installation within 3 days in China.
3. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
4. the discharging height is 1m; In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a ramp to increase the discharging height.

NYHZS series of mobile concrete batching plant
Model	NYHZS25	NYHZS35	NYHZS50	NYHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer (twin-shaft mixer)	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1	1	1	1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	61	76	85	95
Total weight(T)	13	15	19	22

Detailed Picture and Specification



twin-shaft mixer

vertical cement silo

horizontal cement silo

Screw conveyor
1. the screw conveyor length is usually 8m; 2. the screw conveyor with the diameter of 219mm and 273mm are commonly used.

water, cement and additive scales
1. Cement weighing accuracy: +/-1%; 2. Water weighing accuracy: +/-1%;
3. Additive weighing accuracy: +/-1%;
4. Weighing sensor brand: American Transcell;

computer control system
1. Control system language can be: Chinese, English, Spanish, French and Russian; 3. Air conditioner is equipped;
4. CCTV is equipped;
5. Printer is equipped;
6. UPS is equipped. Certifications




After Sales Service
After sales services
1. providing foundation drawing, circuit diagra and operation manual; 2. providing commercial invoice, packing list, bill of lading etc. to help customer with customs clearance;
3. sending engineers to customer's job site to help customer with machine installation and operators training;
4. spare parts supply, machine problems solving.
