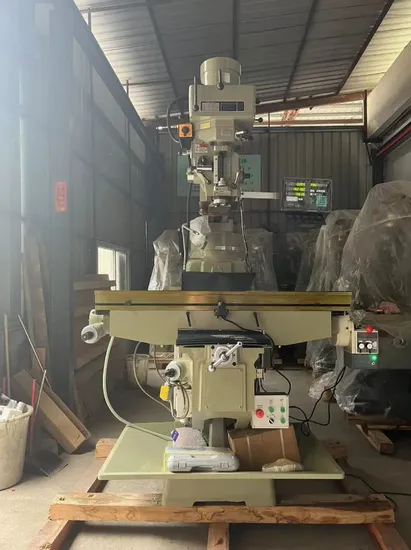

Precision Vertical Milling Machine with R8 Spindle and Lifting Table, CNC Machine, Milling

US$3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Type

Worktable Milling Machine

Object

Hardware

Structure

Rocker

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

GS, ISO 9001

Condition

New

Transport Package

Wood Case

Specification

1750*1700*2200mm

Trademark

ALT

Origin

China

HS Code

8459590000

Production Capacity

2000 Sets Per Month

Product Description

Introducing the 4s Vertical Lifting Table Milling Machine, a distinguished metal milling machine crafted in Taiwan. This cutting-edge apparatus is engineered to offer exceptional precision and efficiency in your metalworking projects, setting a new standard in quality and performance.
Product Description
Mechanical CharacteristicConstructed from Meehanna cast iron, this machine boasts unmatched rigidity and durability, ensuring no deformation over time. Experience a robust and reliable performance that stands the test of time.The spindle, reinforced with a high-precision bearing assembly, delivers powerful cutting force and remarkable accuracy. This enables superior machining capabilities, elevating your production quality.With its pioneering inverted hanging design, the end milling head provides exceptional precision, intuitive operation, and convenient braking. Customizable solutions are available for those seeking specialized features.The three-axis screw nuts are made with premium phosphorus meter copper, offering outstanding wear resistance and a prolonged lifespan, ensuring lasting performance.The XY shaft slide undergoes an advanced high-frequency annealing treatment, enhancing tail wear resistance and significantly prolonging its operational lifespan.A comprehensive lubrication system is integrated to ensure smooth sliding for optimal machine performance, delivering seamless and efficient operations.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is a pivotal factor, directly affecting processing efficiency and cutting force. Increased speeds enhance cutting power, improve surface finish, and reduce residual stress on parts.
Milling Machine Cutting Speed Cutting speed is essential for achieving desired processing speed and quality. The ideal speed adapts to material hardness, cutter material, and machine type, ensuring superior results. Milling Machine Processing Accuracy Processing accuracy is an essential performance indicator, influencing machining and part quality. It is affected by cutting force, machine and tool rigidity, workpiece clamping precision, and initial machine tool errors. Milling Machine Precision Stability Precision stability ensures consistent accuracy during machine operation. It is influenced by initial tool errors, machine tool deformation, and tool wear, playing a critical role in maintaining quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	175017002200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.
