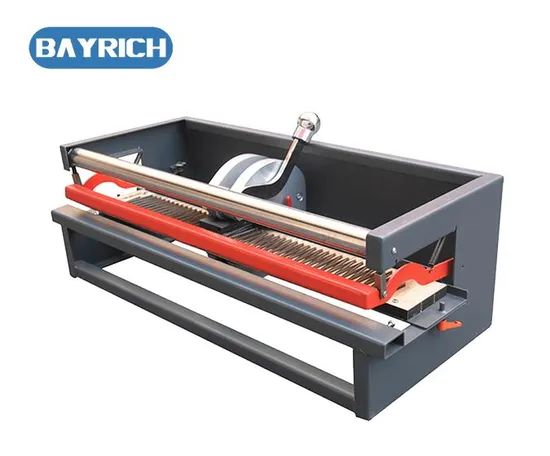

Bayrich Portable Manual Operated Conveyor Belting Finger Punch Machine

Product Description

★Detail: Conveyor belt manual finger Punching machine is designed to punch fingers on the end of lightweight thermoplastic conveyor belt.As a preparation of making single fingers or finger over finger before splicing a conveyor belt.


The punching forces is created by pulling the lever.
Easily done with a person Because of it's easy set-up and manual operation.
Ideal tool for working onsite as well as on workshop.
Portable, manual and easy handling.
No electricity or pressure required.
Open ended for wider conveyor belts.
Single or Finger over finger punching.
★Features
1.The newest manual finger puncher, have different models width from 24″ (300 mm) to 60″ (1500 mm) (no width limited), speical width can make for you!
2.Used for PVC PU belt etc.
3.Light weight and portable design, very good choice for outdoor work use, no need electric power, no need air compressor, no need bring hydraulic pump etc.
4.Both side, open design, no width limited
5.Easy change the blade accords to work, also different blade size can make accords to your requirements (20×50,15×75,10×80,20×80 and etc., also round and sharp blade is optional)
6.Special Fingers:Diamond Finger,Joint More Tighting
7.Single finger splice & double fingers splice
★Technical Datasheet

Model	TC300	TC600	TC900	TC1200	TC1500
Machine Length	530mm	850mm	1120mm	1340mm	1550mm
Width	390mm	390mm	390mm	390mm	390mm
Height	380mm	380mm	380mm	380mm	380mm
Weight	19kg	27kg	36kg	41kg	45kg
Packing Weight(wooden case)	35kg about	50kg about	65kg about	74 about	80kgabout
Packing volumn(L*W*H)	580*500*480mm	100*500*480mm	1330*500*480mm	1400*510*480mm	1580*510*480m

★Machine Detail
★Optional Accessories

---
