High Quality Rubber Vacuum Compression Molding Machine Customization Rubber Bumper Plate Machine, Rubber Machinery Manufacturer

Product Description

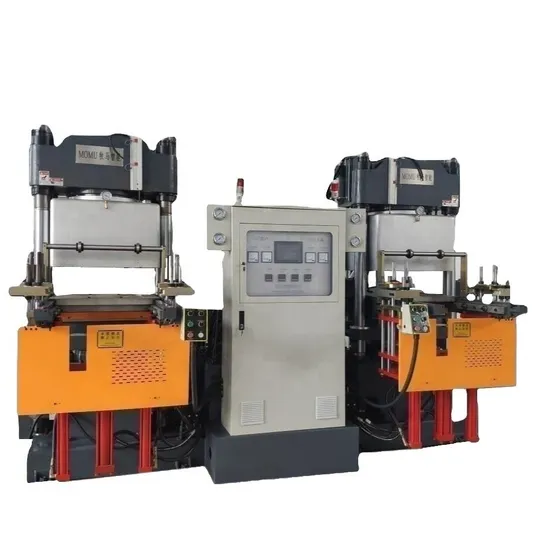

Product Overview Rubber machine , rubber vacuum molding machine , rubber vacuum machine 100T 1. Machine Features:
1, dual-motor dual-pump dual hydraulic system design, two working positions independently controlled, independent operation, when
two operating positions curing time and take the time to stagger products, only one operation, the equivalent of one person to
operate two machines;
2, the former top Clamping way out of the mold clamping mechanism, the mold is opened in front of the machine, easy to take
products;
3, using high vacuum vacuum hood design, can mold is nearly complete vacuum environment, improve the mold exhaust performance;
4, countertops installation mold venting strong spring, with vacuum system, no bubbles forming high-quality products;
5, vacuum hood within 4 seconds to complete the vacuum of -650mmHG the above, for molding easy, requiring of the finished product
is most suitable;
6, the machine fully functional, fit to be repeated mold and structural diversity of the mold, the next shot and thimble optional
equipment;
7, the clamping force per unit area is large, ensure seamless mold together tightly, no flash products, good quality.
FEATURES AT A GLANCE Applicable to o-rings, packing, keyboards, rotary drums, pharmaceutical stoppers, anti-shock supplies, black rubber products,
daily necessities, gaskets, conductive products, electronic equipment, etc. whose appearance require beautiful and edges WORK SHOP SINGLE STATION DOUBLE STATION PRODUCT SPECIFICATIONS

No	Item	TVS-100	TVS-200	TVS-250	TVS-300	TVS-400
1	Clamping force (T)	100	200	250	300	400
2	Heating plate size(mm)	450*450	550*550	650*650	700*700	750*750
3	stroke (mm)	250	250	250	250	250
4	Dimeter of cylinder(mm)	250	360	400	450	500
5	Max. working pressure(Mpa)	21	21	21	21	21
6	power (Kw)	4*2	7.5*2	7.5*2	7.5*2	7.5*2
7	size L*W*H (mm)	2350*1800*2100	2850*1950*2100	3150*2150*2200	3350*2250*2300	3550*2350*2300
8	Weight (KG)	4500	6500	7500	8000	14000

PRODUCT CONFIGURATION sevor motor Imported YUKEN control valve Japan YUKEN hydraulic motor SALES AND SERVICE NETWORK Successful Project Chinaplas exhibition Chinaplas exhibtion Asia Rubber SIMILAR PRODUCTS FAQ Q1can make all kinds of rubber molding machine according to your needing A1offer full line

---
