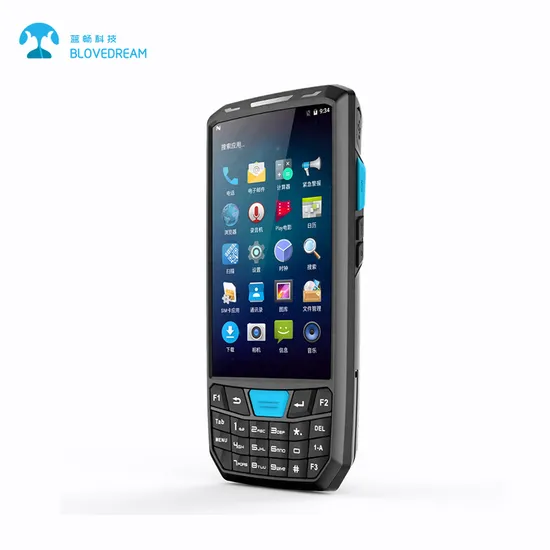

Blovedream T80s 4.5 inch Industrial Rugged PDA Barcode Scanner Android with GMS Certification Android 8.1
| Structural Parameter |
| Dimensions | 166mm(L)X77.5mm(W)X22mm(D) |
| Weight | <500g |
| Display Screen | 4.5inch IPS 480*854 px with Multi-point touch capactive screen |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface | Type-C USB
|
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.8V 4200mAh |
| Frequency | 8ohm 1W speaker |
| Key | Silicone keyboard |
| Performance Parameter |
| OS | Android 8.1 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 2.0G |
| RAM | 1G/2G RAM |
| Flash ROM | Standard 8G/16G NAND Flash Storage |
| micro SD/TF port (Max up to 32G) |
| Data Communication |
| WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
| WCDMA 3G | B1,B2,B5,B7,B8 |
| GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
| bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Standard Modules |
| Camera | 8MP autofocus camera with flash |
| GPS | Support GPS, Galileo, Glonass, Beidou |
| Operating Environment |
| Operating | -20°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP66 |
| 1D Laser Scanner (OPTIONAL) |
| 1D Laser Scanner | Symbol 955, HoneywellN4313,Mingde966 |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| 2D CMOS (OPTIONAL) |
| CMOS Scanner | Honeywell N6603,NewLand 3096 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| LF RFID Reader (Optional) |
| Frequency | 125kHz, 134kHz (FDX-B / HDX) |
| Protocol | ISO11784/5, ISO18000-2 |
| Range | 3-8cm |
| NFC Reader (Optional) |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
Thanks for the interest in r products.We'll handle the after-sales service as following.
1)We offer 13 months warranty.The device with quality issue (excluding human factors) can get repaired or replaced during the period.
2)If clients handle the problem locally,we'll offer 2% of LCD,housing and keyboard ,1% of other spare parts for free.For those quality defects problem,please take pictures and video to report.We'll supply them after you run out of the spare part on hand.
3)For the product assemblement and repairment, we'll send video guidance for your reference.We can also send technician for on-site technical support if necessary.
4)We offer lifetime technical assistance for you.
