Pressurized Vessel PVDF Hollow Fiber UF Membrane Water Filter for Municipal Industry

Product Description

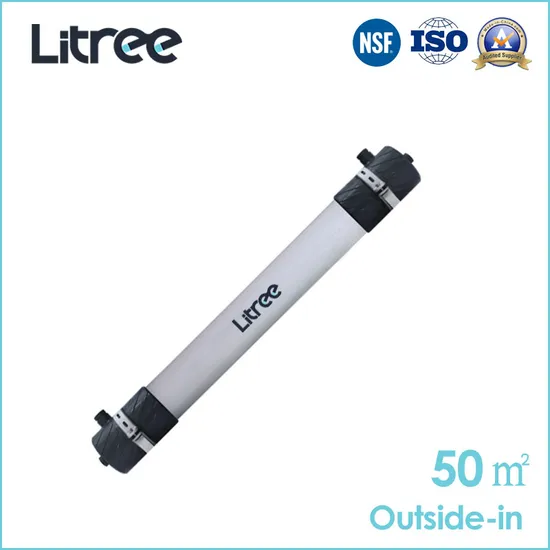

Pressurized Vessel PVDF UF Membrane Filter Water Treatment Plant
About LITREE: Litree is the biggest hollow fiber UF membrane manufacturer in China, we provided quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system since 1992, we are also the first brand in Chinese residential UF filter market.
Now our products are widely used in municipal water supply, rural water quality improvement, industrial processing water supply, industrial wastewater recycling, municipal sewage treatment and recycling, etc.
Features:
1. Pore are evenly distributed with high precision;
2. Unique anti-fouling membrane surface;
3. High and stable flux;
4. Operating under low pressure with less energy consumption;
5. High physical strength and chemical resistance.
6. Modularization design - easy to upgrade in the future
Technical Parameters:

Model		Pisces-51
Membrane Performance	Membrane material	PVDF
	Membrane Area (m2)	51
	Pore size (μm)	0.02
Operation Condition	System structure	Pressurized
	Filtrate direction	Outside-in
	Max. inlet pressure (MPa)	0.3
	Max Operating Temp. (ºC)	40
	pH range	2~12
Module Dimension D×L (mm)		Φ271×1860

Notice: Design flux depends on raw water quality
Application:
Drinking water
Municipal water plant
Rural water supply
Senior residential water supply
Mobile water treatment system
Municipal water supply
Municipal water plant deep treatment
Rural drinking water Purifying
Direct drinking project
Sandfilter Backwash Water Reuse:
Welcome to contact us about any topics about the UF membranes and water treatment equipments. Your opinions will be highly appreciated.

---
