Hot Sale Xk7130A CNC Vertical Economic Milling Machine

Product Description

Hot Sale XK7130A CNC Vertical Economic Milling Machine Feature:
This CNC Milling Machine can be used for milling, boring, drilling. The machine is suitable to perform various procedures such as plane surface, inclined surface, slot, gears, spline and grooves. It's therefore to meet maintenance and manufacture in various enterprises, especially for manufacturing tools, fixtures and dies, etc.
The structrue:

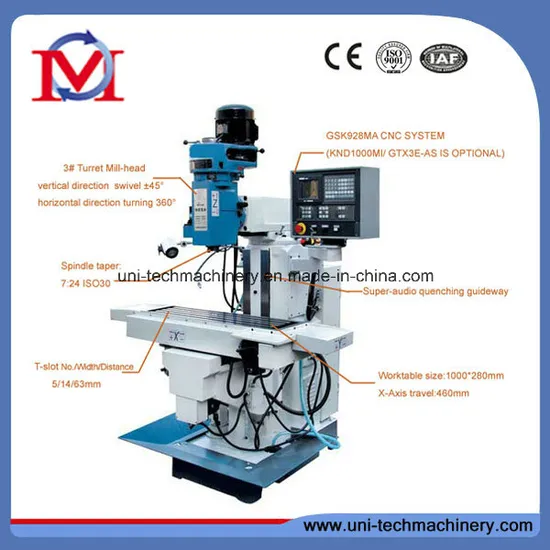

This CNC Milling Machine is composed of the base, table, column, milling machine head, rise-and-fall mechanism, lubrication system, cooling system and electric system. The electric cabinet is installed on the rear face of the column, the electric operation panel is hanged in the front of the right side of the column, operateon is convenient.
Standard configuration
1)GSK980MDA CNC system
2)3# Turret Mill-head
3)Suit for Small parts of the high-precision, highly efficient automatic processing.
4)Fully functional
Optional configuration
HNC-18i/21MD,GSK-983M or KND-100Mi

Specification	Unit	XK7130A
X-axis travel	mm	460
Y-axis travel	mm	210
Z-axis travel	mm	360
Spindle nose to table	mm	120-480
Spindle center to column guide-way face	mm	200-500
High speed feeding of X, Y axis	mm/min	3000
Feeding speed	mm/min	1-2000
Size of working table	mm	1000× 280
Max. loading capacity of rotary table	mm	100
T-slot NO. /width/distance of rotary table		3× 14× 63
Spindle speed range/step	r/min	66-4540/16steps
Main motor rated power	Kw	2.2(3HP)
Spindle hole taper		7: 24 ISO30
N. W	KG	1300
Overall dimension	mm	1540× 1340× 2130

---
