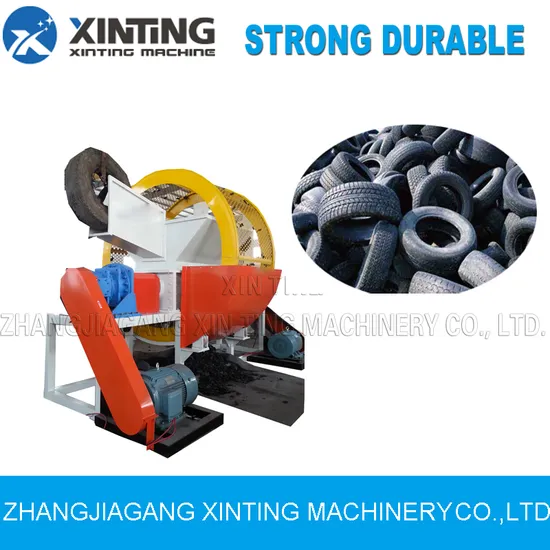

Double Shaft Metal Tyre Tire Plastic Shredder Machine

Product Description

Industrial Waste Shredder Double shaft shredder
Our double shaft shredder Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost Effective Precision, High Radial Loads.
Application Areas on double shaft shredder: A variety of containers: plastic beverage cans, plastic barrels, drums, crates, packaging barrels,PP bottle,PE pet bottle. Waste appliances: TV, washing machine, refrigerator shell, printer, keyboard, waster Microwave oven,waster computer,waster mouse,Circuit board. Pipe: large pipe, pipe fittings, PE pipe,PVC tube. Wood: wooden pallets, plastic pallets, forklift pallets,Used furniture. Rubber:waster wire, tires tires, truck tires. Scrap metal: car shell, aluminum, scrap aluminum, engine shell, Lead plate,waster steel,waster iron. Garbage:Food waste,animal carcass, medical waste, garden garbage,Fruit trash,Vegetable trash,glass.
Double shaft shredder advantages: Step-shearing style cutter can resolve the force bored by cuttings, and increase the force of cutting greatly. Blade quality have 9CrSi, Cr12MoV, SKD II, D2,DC53 etc. Can be customized according to customer. The crushing room use noise arrested, to lower noise. Crushing room materials is high quality steel, rigid reasonable and durable. The screen can be changed quickly, the aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials. The aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials. Button control, easy to operate, set up, stop, reverse, overload protection and other functions. Robust welded hopper with additional support struts to increase strength of hopper and prolong service life.The feed inlet is provided with a protective device for increasing safety.
Working principle on double shaft shredder:
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out;
2.Double shaft cutting system:Using different blades according customers' material;
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs;
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.
Technical parameter on double shaft shredder:

Model	XT-D600	XT-D800	XT-D1000	XT-D1200
Motor power (kw)	7.5+7.5	15+15	18.5+18.5	30+30
Capacity (kg/h)	500-600	700-800	800-1000	1000-1200
Cutter (pcs)	22	30	30	36
Shredding room size (mm)	600x430	800x430	1000x500	1000x580
Weight (kg)	2300	3300	5000	6800

Tips:
1. The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request;
2. We have welding, removable and integral blade holders for our double shaft shredder. You can communicate with our sales representative to confirm the suitable blade holder.

---
