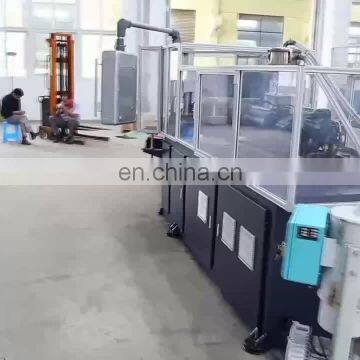

Polyurethane Visco Foam Injection blow Molding Machine FG-45

Product Details

Product Description

Product Description
Technical parameters

Name	Unit	FG40	FG60	FG80	FG100
Screw diameter	mm	40	45	50/55	60
L/D Ratio		22:1	22:1	22:1	22:1
Injection Capacity	9	176	260	314	415
Heating power	KW	7.5	10	10.8	12
Heating section		3+N	3+N	4+N	4+N
Injection mould clamping force	KN	400	600	800	1000
The injection mold opening stroke	mm	140	140	140	150
Mould clamping force	KN	60	100	120	150
Blow mold opening stroke	mm	140	140	140	150
Injection stroke	mm	160	160	160	160
Mold Size	mm	480*340	600*390	800*400	1000*460
Min. Thickness of Mold	mm	180	240	280	280
Main motor power	KW	11	18.5	22	30
Reject Stroke	mm	210	230	230	230
Dry Cycle Time	s	3.5	4	4	4
Total power	KW	20	30	40	45
Operating power	%	52-70	52-70	52-70	52-70
System pressure	Map	14	14	14	14
Compressed air pressure	MPa	0.7-1.2	0.7-1.2	0.7-1.2	0.7-1.2
Cooling water pressure	MPa	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Product maximum diameter	mm	120	120	120	120
Product maximum length	mm	200	220	220	220
Product volume	ml	3-800	3-800	3-1000	3-1000
Dimensions	M	3*1.3*1.7	3.5*1.4*1.8	4*1.6*2	4.5*1.8*2
Equipment weight	Ton	3.5	5	8	10

Mode cavity number control table

Product Size				ZQ40	ZQ60	ZQ80	ZQ100
Volume	Neck Dia.	Height	Body Dia.	Cavities	Cavities	Cavities	Cavities
5ML	10	35	45	9	14	18	22
10ML	12	40	20	9	12	16	20
20ML	15	50	25	8	10	14	18
30ML	20	60	30	7	9	13	16
40ML	22	65	35	7	8	12	15
60ML	28	75	40	6	8	12	14
80ML	30	80	45	5	7	10	13
100ML	32	85	50	4	6-7	10	12
150ML	35	90	53	3	5-6	8	9
200ML	38	100	58	3	4-5	7	8
400ML	42	120	65	2	3-4	6	7
650ML	50	160	80	1	2	5	6
800ML	40	200	90	1	2	4	5
100ML	45	200	90		1	2	3

FG Series Automatic Injection Blow Molding Machine (European)
The machine is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.
This machine has used the European standard injection blowing mode, which has absorbed the advantages of domestic injection.
Has the following characteristics:
Close mould cylinder, ensure product cleaning. The clamping force of the clamping force on the internalbalance, uniform.
Decreased the Machine height for easy assemble the mold.
Unique hydraulic servo system, reasonable layout of the pipeline, so that the machine is running high efficiency and energy saving.
The unique structure of the boost lock structure increases the clamping force and reduces the energy consumption of the system.
With servo system to control the mold rotary & increase rotary accurancy and reduce the dry cycle time.
Special double cylinder horizontal valve plate superimposed injection system, so that the injection, storage more smooth and fast, beautiful appearance, Special plastic components, to meet the requirements of different products, multi-level injection, pressure projection.
Internal layout optimization, equipment maintenance,maintenance more convenient.
Release the digital sensor detection, and increase the mandrel rotary detection function, realize the unattended, automatic operation.
Optional air conditioning mandrel function, shorten the product cooling cycle,solve the problem of sticking mandrel.
The conveyor belt can be connected with the visual inspection, Leakage Thester labeling and other equipment.
Injection Molding Machine samples:
Equipment Productive Flow Sheet
1,STOCK PREPARATION/INJECTION DEVICE
2,HOT-FLOW CHANNEL
3,ENTIRE BAR
4,BOTTLE BLANK
5,INJECTION MOLD
6,INJECTION STATION
7,BLOW STATION
8,BLOW MOLDING
9,STRIPPER STATION

---
