Advanced Automated Milling Machine with 4m Lifting Table, CNC Machine, Milling

Product Description

Introducing the 4s Vertical Lifting Table Milling Machine, a truly premium metal milling marvel crafted with precision and excellence in Taiwan. This state-of-the-art machine is engineered to redefine precision and efficiency in the realm of metalworking, elevating your production capabilities to unmatched heights.
Product Description
Mechanical CharacteristicExpertly crafted with the renowned Meehanna cast iron, this machine exemplifies exceptional rigidity and stability, guaranteeing that it remains deformation-free over time. This ensures a robust, reliable performance that you can depend on.The spindle, enhanced with a precision-bearing combination, offers formidable cutting force alongside outstanding accuracy. This enables superior machining capabilities that stand out in the industry.With an innovative inverted hanging design, the end milling head delivers exceptional precision, user-friendly operation, and convenient braking. Customized solutions are readily available for clients seeking specialized features.Our three-axis screw nuts are crafted from top-tier phosphorus meter copper, providing extraordinary wear resistance and an impressively extended lifespan.The XY shaft slide undergoes high-frequency annealing treatment, significantly enhancing tail wear resistance and greatly extending its operational lifespan.An advanced integrated lubrication system ensures seamless, fluid sliding for optimal machine performance, maximizing efficiency and reliability.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is a critical factor, as it directly influences processing efficiency and cutting force. Faster rotation enhances cutting power, improves surface quality, and minimizes residual stress on manufactured parts.
Milling Machine Cutting Speed Cutting speed is crucial for both processing speed and quality. The ideal speed varies based on material hardness, cutter material, and machine type, ensuring that you achieve optimal results every time. Milling Machine Processing Accuracy Processing accuracy is a key performance metric that significantly impacts machining and part quality. It is influenced by cutting force, machine and tool rigidity, workpiece clamping accuracy, and initial machine tool errors. Milling Machine Precision Stability Precision stability guarantees consistency in machine accuracy throughout operation. It is influenced by initial tool errors, machine tool deformation, and tool wear, all crucial for maintaining superior quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

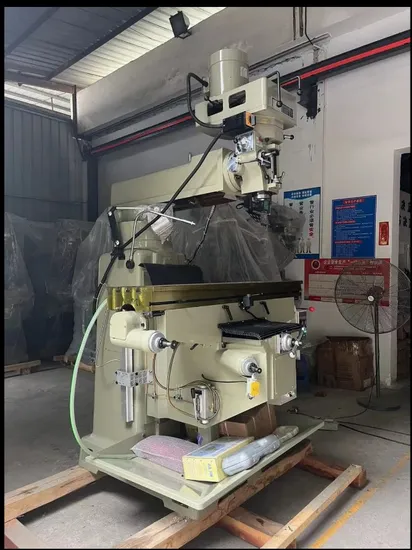

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
