Automatic 600kg Electric Remote Control Glass Vacuum Lifter with CE

Product Description

Automatic 600kg electric remote control vacuum lifter with CE
(Professional Manufacturer)
Sagafirst Vacuum lifter series are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
Features & Advantages:
- Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
- DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
- Attractive price, staff saving, strong improvement of working environment.
- There are 3 models available, GL-LD, GL-HD and GL-FC-6035 suits for different working environments.
GL-LD light duty vacuum lifter, small size, easy to transport.
Description:
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
Specifications:

Model Type	GL-LD-350	GL-LD-600
Loading Capacity	350kg (retract)/175kg(extend)	600kg (retract)/300kg(extend)
Lifting Height	3500mm	3500mm
Battery	2x12V/100AH	2x12V/120A
Controller	VST224-15	CP2207A-5102
Drive motor	24V/600W	24V/900W
Hydraulic power	24V/2000W/5L	24V/2000W/5L
Cap Diameter	Ø250mm/300mm	Ø250mm/300mm

GL-HD heavy duty vacuum lifter, easy to move around,
Description:
Self-propelled drive, Higher lift cap. is available upon request. Electric side shift 100mm both right & left. Electric tilting forwards & backwards from vertical to horizontal or reverse. Suction plate is manual rotating.
Specifications:

Model	GL-HD-4020	GL-HD-6030	GL-HD-8040
Max. Load Cap.	400kgs	600kgs	800kgs
Safe Load Cap.	200kgs	300kgs	400kgs
Lift H.	1500mm	1500mm	1500mm
QNTY of Caps	4	6	8
Cap Diameter	Ø300mm	Ø300mm	Ø300mm
Max. Plate Size	2440x1830mm	2440x1830mm	3660x2440mm
Drive Motor	24V/500W	24V/700W	24V/900W
Hydromatic Motor	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/70Ah	2x12V/100Ah	2x12V/160Ah
Charger	24V/10A	24V/15A	24V/20A

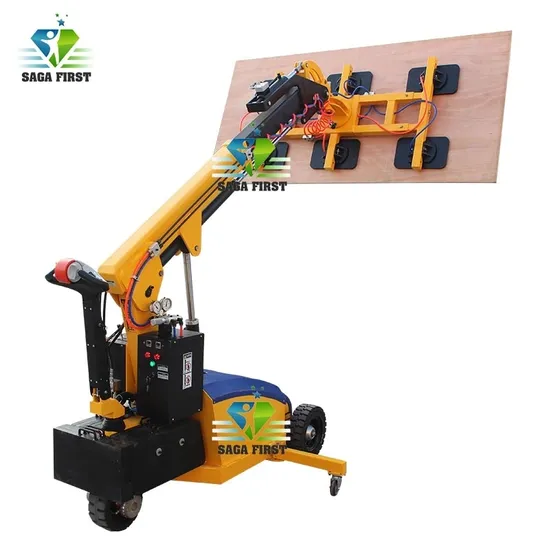

GL-FC-6035 floor crane style vacuum lifter, various options.
Description:
GL-FC-6035 is designed and modified based on Sagafirst FC Series Full Power Floor Crane. And it is combined with vacuum lifter for carrying glass, steel plate and some other materials.
Specifications:

Model	GL-FC-6035
Max. Capacity	600kgs	Battery	2x12V/100A
Safe Capacity	350kgs	Charger	24V/15A
Lift Height	3500mm	Drive Motor	24V/700W
Qty of Cap	6pcs	Lift motor	24V/2000W
Cap Dia.	Ø300mm	Travel speed W/O load	4.5km/h
Max. Plate size	3300 x 1500mm	Travel speed W/Load	3.5km/h
Handle	CH-2	Grade ability	5% / 10%

Certificate:CE ROHS SGS IOS ETC.

---
