Wood CNC Machine with 4 Water Cooling Spindle

Product Description

Wood cnc machine with 4 air cooling spindle

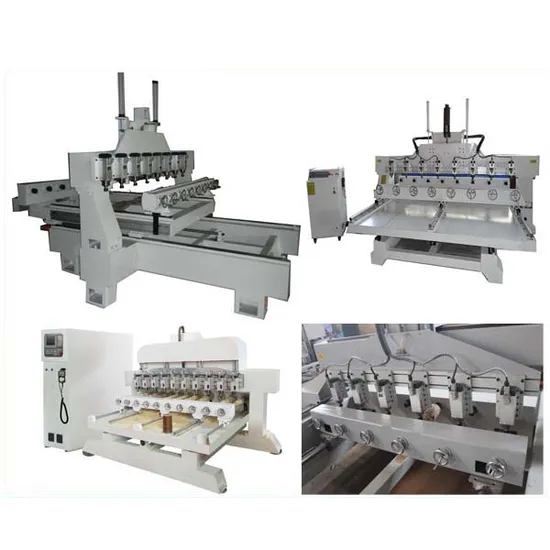

Our machine picture
Configuration:
1.Water cooling spindle with high speed,high efficency and little noise.
2.All of the spindles can work together to save you time and costs.
3.The lathe is founded by welded steel that ensures the high stability and longtime use.
4.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision,large load bearing and stable running.
5.High speed driver and Stepper enhance work efficiency.
6.Our controller is DSP,easy to operate(optional:DSP control system).
7.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.
8.Adopt high powerful weled steel bed structure.
9.The Ball screw in transtimission improve the work ability.
10.Many parts can change according to your requirement.
Details
Technical parameters:

Model	ZK1325
X,Y,Z axis working area	1300*2500*200mm
Whole structure	Weled thick steel bed structure
X,Y,Z structure	Taiwan HIWIN Linear Square guide rails
X,Y structure	Taiwan J.T high precision helical rack for X,Y axis transmission, high speed and more stable;
	Taiwan TBI ball screw, high precision
Max. idling speed	50m/min
Max. working speed	25m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	Air cooling spindle
Spindle rotating speed	6000-18000rpm/min
Diameter of tools	Φ3.175 -Φ20
Collect size	ER 25
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	Stepper motor
Operating system	DSP control system
Working voltage	220V/380V
Software	UcancamV8 / Type3 / Artcam software (option)

After sale service:
1 we offer 1 year warranty
2 we offer 24 hourses technical support online
3 Druring the warranty, if there is part broken, we will offer you the same for free.
