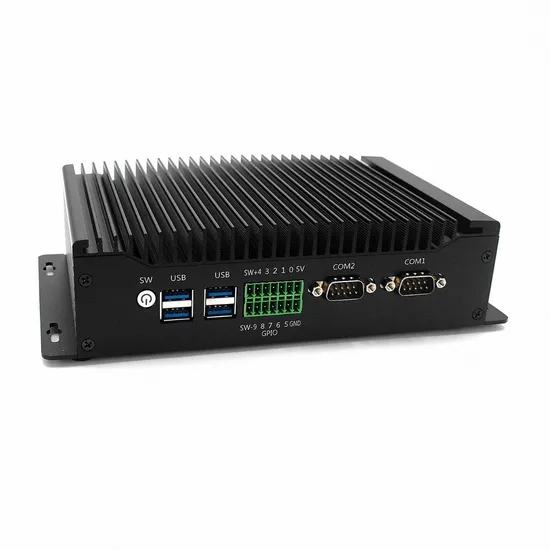

Hystou Industrial Mini PC H6 4 Core I5 DDR4 Whit Gpio Dual LAN Fanless Desktop Micro Computer

Product Description

Fanless PC Mini Industrial Computer Core i3 i5 i7 Product Picture HYSTOU GPIO Dual LAN Fanless Industrial Mini PC HYSTOU H6 industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.

Rich interfaces to respond to the needs Fanless Industrial PC H6 is equipped with 6*USB, 2*COM, 2*LAN, 1*DP, 2*HD interfaces, etc. USB3.0 transmission speed is fast, which improves your work efficiency and saves your time. It supports a wide range of peripheral devices, such as TV, monitor, scanner, ticket printer, projector, office equipment, surveillance equipment, etc.
DDR4 and Expandable Storage With the HYSTOU Mini PC's 64GB DDR4, your system can easily handle memory-intensive tasks such as opening large graphics files with ease. If you need more storage space, you have the option of adding a 2.5-inch solid state drive to expand the maximum memory to 4TB, effectively creating a secure data bank that meets your needs.
Multimedia Service The micro computer comes equipped with Intel UHD Graphics, ensuring swift image processing and supporting stunning 4K UHD video playback at 4096x2160@60Hz. With the ability to set up a three-screen display, you can enhance your productivity and enjoy a smooth 4K UHD video experience at home, providing a great TV experience. It is ideal for visual home entertainment, home office tasks, and conference room applications.
Compact & Portable Strong Functions This mini PC has a compact structuresize 205*125*53mm, which helps to save space and is easy to carry. The all-aluminum alloy case is anti-interference, anti-vibration, anti-pressure and anti-shock, and resistant to high and low temperatures, which ensures stable operation for a long time in harsh environments. The rich port design ensures smooth operation for gaming, office, navigation, browsing or multitasking. You can use it in offices, training centers, factories, Internet cafes or anywhere else. Product Description

Processor
CPU	Intel Core i5-8260U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
	Intel Core i5-10210U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 4.20 GHz)
	Intel Core i5-10310U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.70 GHz Turbo Frequency 4.40 GHz)
TDP	15W
CPU Lithography	14nm
Memory Specifications
Max Memory Size	64GB
Memory Types	2*DDR4 SO-DIMM 260 pin
Memory Channels	Dual Channels
ECC Memory	Don't support
Storage Specification
m.2 SSD	1*M.2 2280 M KEY PCIE3.0
SATA	1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA	NO mSATA slot
Graphics
Processor Graphics	Intel UHD Graphics
HD-MI	1*HDMI 4096*2160@30Hz(4K) + 1*HD-MI 4096*2160@60Hz(4K)
DP	1*DP 4096*2160@60Hz(4K)
Power Specification
Power Adapter	DC 12V/6A
Adapter Input	AC 110-240V, 50/60HZ
Consumption	50W
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	2*USB 2.0 port,4*USB 3.0 port
Audio	1*3.5mm MIC in & SPK out
Video	HD-MI 4096*2160@30Hz + HD-MI 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output
Audio Cards	USB Audio Device
Lan Port	2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
Com Port	2*RS232 Com port,Support RS422/RS485 Com port
Wi-Fi	Inside Wifi & Bluetooth Combo
System	Support Windows 10/11, Linux
Case Material	Aluminum Alloy
Dimension	PC size 205*125*53mm
	Package size 308*206*75mm
Weight	Net 1.2kg; Gross 1.9kg

Company Introduction Hystou is a professional manufacturer and exporter of desktop mini PC. OEM and ODM orders are welcomed. The more you purchase, the cheaper the price. Our company in Shenzhen Welcome to visit our factory! Workers are assembling mini pc. Packing&Shipping Packing List: Normally we use the carton box, 5 or 10pcs per carton 1 x Mini PC 1 x Power adapter(correct power plug based on
buyer's country) 1 x WiFi modlue with dual antennas(barebone not include WiFi) 1 x VESA bracket(some model not support) 1 x Sata
