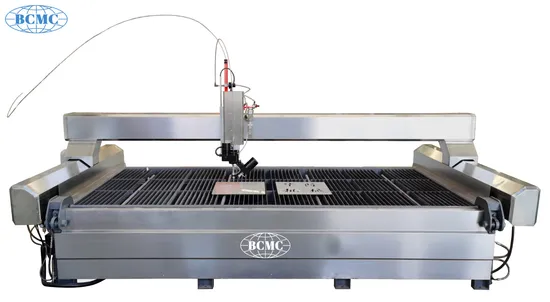

Bcmc Bcwj-2015 AC Type Waterjet 5 Axis CNC Bridge Stone Cutting Machine for Sale

Product Description

BCWJ-2015, which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision. This 5 axes waterjet cutter can cut at any angle within ±60°, it solves the traditional problem of water cutting inclination and achieves 2D/3D cutting easily. The line cutting accuracy is ±0.1mm, angle cutting accuracy is ±0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface. It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials. Parameter Data

Name	Unit	BCWJ2015	BCWJ2515	BCWJ3015	BCWJ3020	BCWJ4020
Workbench	mm	2100*1600	2600*1600	3100*1600	3100*1600	4100*2100
Stroke(X-aixs)	mm	2000	2500	3000	3000	4000
Stroke(Y-aixs)	mm	1500	1500	1500	1500	1500
Stroke(Z-aixs)	mm	80-130	80-130	80-130	80-130	80-130
Stroke(A,B axis)	mm	±10
CNC controller		Step system/ AC Servo system
Cutting precision	mm	±1
Cutting precision	mm	±0.05
Fast positioning precision	mm/min	6500/15000
Power supply		220V/380V/415V AC, 50/60Hz

Detail ImagesWater Jet SoftwareBrand: WeihongOriginal: China A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize perfect dynamic five-axis cutting,Easy to operate and to learn.Main Motor Produced by: SiemensOriginal: China
Power: 37 kwEfficiency: 92.7% To generate motion energy throught electtical energy for high pressure pumpIntensifier
To produce high pressure water continuously.
Main parts come from Ashcroft, USA.Stable performance and operation Elec-magnet ValveBrand: YuanhongOrigin: China Indicate and change advantageServo MotorBrand: WeihongOrigin: ChinaNr of revolutions: 0-1500 rpm Drive X axis moving accuracy and reposefully.Laser SensorBrand: WeihongOriginal: China Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant
Main Features:Processable any curve cutting, flexible, convenient and versatile.Notch is fast and smooth, no dust, no thermal deformation and no pollution. Tension-free processed parts due to minimal cutting force.Narrow kerf - The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness. Cut Recovery - Pick back up where Jet stopped.Programmable Z axis height. Z axis retracts between pierces.Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.Driver system sealed against water,dust and grit. Long working life.High Pressure PumpAdopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head. Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.Auto Abrasive Delivery SystemTransfers the abrasive to the abrasive regulator.Air valve to prevent jams and breakages
Auto control with CNC auxiliary function
Self sealing
Slightly adjust the flow.Automatic Water Cooling TowerIt cool and guarantee the hydraulic system can be used in a circular manner and save waters.
Application:
* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.
* Glass industry , such as bathroom glass, shop window glass, automotive glass and appliance glass.
* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.
* Gasket Cutting
* Foam Product Cutting.

---
