Mini Rotary Vane Oil Vacuum Pump Single Stage Pump for Vacuum Oven

Product Description

Product Description
China Lab Oil Vacuum pump Two-stage rotary vane workshop Vacuum pump Mechanical pump Electric suction pump VRD series
It is mainly used in medicinal products analysis , industry of fine chemicals , biochemical pharmacy , food examination , The criminal investigation technology , etc . It is used with the precision chromatography instrument , the necessary of laboratory . This product is specially designed for laboratory , reliable and easy to use .
APPLICATION:rotary evaporator/ glass reactor / vacuum filter / distillation
Product Parameters

MODEL		VRD-8	VRD-16	VRD-24	VRD-30	VRD-48	VRD-65
Displacement speed m3/h (L/s)	50Hz	8 (2.2)	16 (4.4)	24 (6.6)	30 (8.3)	48 (13.3)	65 (18)
	60Hz	9.6 (2.6)	19.2 (5.2)	28.8 (7.9)	36 (9.9)	57.6 (16)	78 (21.6)
Ultimate partial pressure gas ballast closed (Pa)		5x10-2	4x10-2	4x10-2	4x10-2	4x10-2	4x10-2
Ultimate total pressure gas ballast closed (Pa)		5x10-1	4x10-1	4x10-1	4x10-1	4x10-1	4x10-1
Ultimate total pressure gas ballast open (Pa)		3	8x10-1	8x10-1	8x10-1	8x10-1	8x10-1
power supply		Single/Three phase	Single/Three phase	Single/Three phase	Single/Three phase	Three phase	Three phase
Power rating (kW)		0.4/0.37	0.75/0.55	1.1/0.75	1.1	1.5	2.2
Intake and exhaust DN (mm)		KF16/25	KF25	KF25/40	KF25/40	KF40	KF40
Oil capacity (L)		0.6~1.0	0.9~1.5	1.3~2.0	1.3~2.0	3.3~4.5	3.3~4.5
Motor speed (rpm)	50Hz	1440	1440	1440	1440	1440	1440
	60Hz	1720	1720	1720	1720	1720	1720
Ambient temperature (°C)		5 - 40	5 - 40	5 - 40	5 - 40	5 - 40	5 - 40
Noise level (dB)		≤56	≤58	≤58	≤58	≤62	≤62
Net weight (kg)		20	33	35	37	62	65

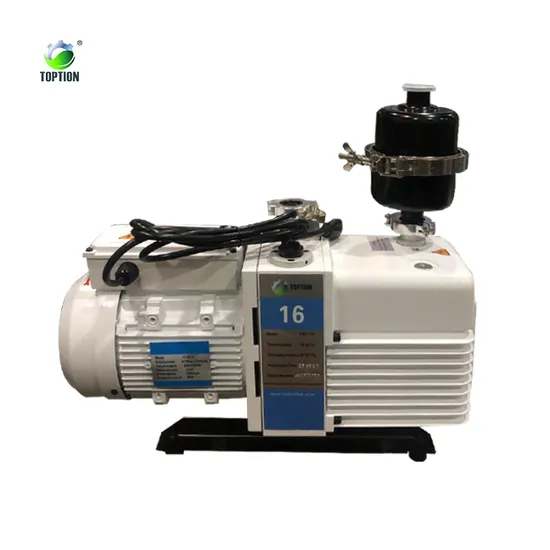

Detailed Photos
1.Two-Shift adjustable gas ballast valve satisfies different requirements of condensable vapor(such as water vapor) to be exhausted out of pump in different processes.
2.Dual protection of oil anti-sucking back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
3.Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
4. Less components are used, easy to maintain and repair.
