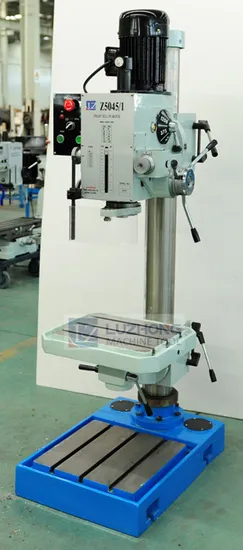

Auto Feed Floor Stand Vertical Drilling Machine (Z5032/1 Z5040/1 Z5045/1)

Product Description

Auto Feed Floor Stand Vertical Drilling Machine (Z5032/1 Z5040/1 Z5045/1)
Product Description
Product Parameters
Product main technical Specifications:

Specifications	Z5032/1	Z5040/1	Z5045/1
Max.drilling dia.	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Step of spindle auto-feeding	6	6	6
Range of spindle auto-feeding amount	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Min.distance from spindle axis to column	290mm	290mm	290mm
Max.distance from spindle nose to worktable	725mm	725mm	725mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max.travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal)	360°	360°	360°
Max.travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliability	380×300mm	380×300mm	380×300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	±45°	±45°	±45°
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
speed of motor	1400 r.p.m	1400 r.p.m	1400 r.p.m
Cooling pump power	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	437kg/487kg	442kg/492kg	442kg/492kg
Packing size	1850×750×1000mm	1850×750×1000mm	1850×750×1000mm

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
