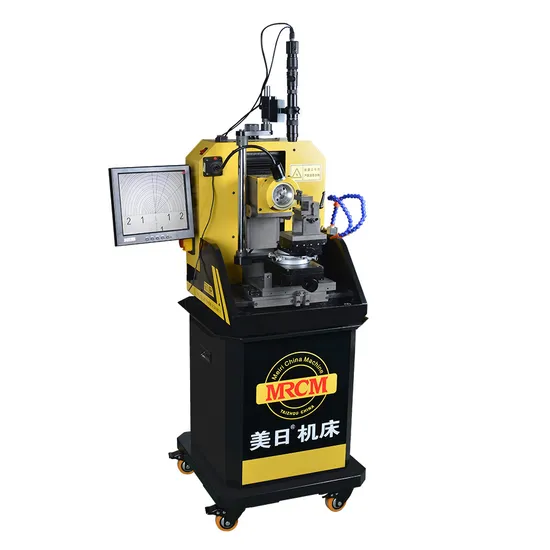

Mr-M4 PCD&CBN CNC Blade Grinder

Product Description

Product Description
1.The M4 machine tool uses the camera to detect the sharpening tool.With the special reticle,it can detect
the length of the tool. the angle and the radius of any radius of(R0.05-R2.5)
2.The M4 machine tool is a high -definition rate camera used as the online detector for projectors.The projection
has high resolution,high quality and no distortion and its accuracy is greatly improved. the accuracy and resolution
of the machine can reach 0.001mm.high precision tool on-line measurement can be completed.(as well as a simple
measurement of the set parameters of the tool)
3.The machine has high structural strength and good grinding stability.
4.The grinding material of the machine tool:PCD blade.alloy balde,CBN blade,boron nitride,if the user is to grind
other materials,it is necessary to prepare and replace the suitable grinding wheel

Model	MR-M4
Grinding wheel distance of up and down	50mm
about worktable diameter	100mm
Taper angle range	0-180(degree)
Relief angle range	±25(degree)
Negative angle range	±25(degree)
Motor	380V 50HZ
Grinding wheel	Φ
Grinding spindle	Φ100*50*Φ32
Weight	150kg
Dimension	56*60*80cm

Details:

MR-M4
Blade and LATHE TOOL GRINDER
Grinding a variety of welding tools,boring cutter,planer,grinding various turning,boring and milling cutter.
The machine has been fitted with diamond grinding wheel,which is mainly suitable for grinding hard alloy materials,CBN
materials and ceramic material.If the user is to grind other materials, It is neccessary to prepare and replace the suitable
grinding wheel.
INSISTING ON ORIGINAL DESIGN FROM CHINA
Focus on precision and detail
The MR-M4 CNC blade grinding machine is a new grinding equipment developed for grinding PCD blades, alloy blades
and CBN blades. It can repair and wear 5-30mm blades in a high range, and can adjust the circle area of the tool tip
R0.05-R2.5mm.
High efficiency, high quality and good effect of grinding grinding process. Easy to operate, for emergency convenient
appliances, fast.
This machine can be used for CNC blade grinding equipment of 5 - 30mm range. It also ensures high precision and
high efficiency. The tool can be used repeatedly, reducing the waste of resources and saving the cost for the enterprise.
Using a camera to test the cutting tool and use the special delimit, the length of the tool can be measured.
The angle and (R0.05-R2.5) arbitrary circular arc radius are detected online.
EXPORTING PACKAGE, SAFE AND STABLE
COMPANY INFORMATION
MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve
the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder,
saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero
positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the
domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national
patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as
Japan, Europe countries and so on.


FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you
can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.

---
