Operating condition
| PN: 1.0/1.6 Mpa (10/16bar)
|
The water temperature
| cold water up to 50℃ and hot water up to 90℃
|
Standard
| ISO 4064 Class B
|
Material
| Brass, Iron, Plastic
|
Size
| DN15 – DN50
|
Type
| Dry
|
Application
| Measuring the total volume of cold portable water passing through the pipeline. Can be used for a remote reading transmission
system as equipped with a built-in sensor.
|
Brand Name
| MIDAS
|
Packaging
| Carton, pallet and as per customer's requirement.
|

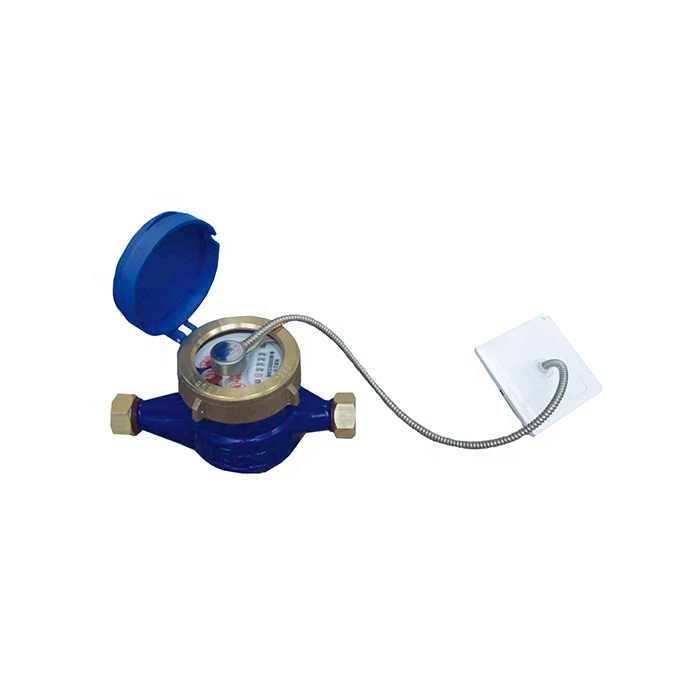

This water can be used for a remote reading transmission system as equipped with plus.
