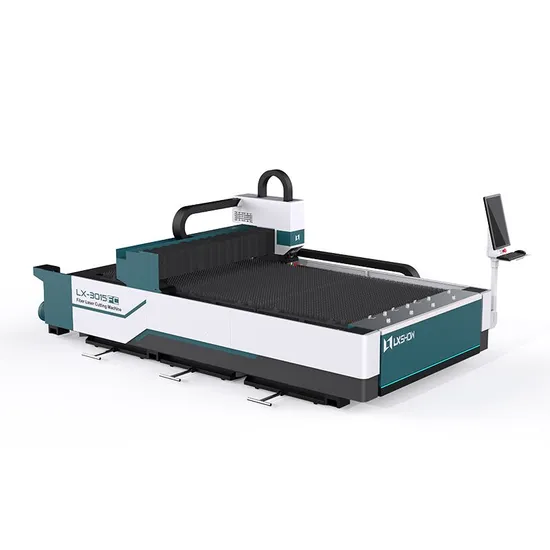

2024 Fiber Laser Cutting Machine for Sale Near Me

Product Description

The high energy laser beam shines on the surface of the workpiece, so that the workpiece reaches the melting point or boiling point, while the high pressure gas blows away the melted or vaporized metal. With the movement of the relative position of the beam and the workpiece, the material is finally formed into a slit, so as to achieve the purpose of cutting.

Interior Structure
Parameters

Machine Model	LX3015FC
Adaptive power	Standard with 1-3kw, optional 6kw
Bearing weight	800kg
The nose cover	open-ended
Table frame blade thickness and replacement	3mm, 3 sets of split countertop frame
Max Running Speed	120m/min
The height from the base to the tip of the rack	675 (without the footing), plus the height of the footing 775mm
Z-axis travel	130mm
Distance from tip of nozzle rack	The BM110 automatic head is 90mm from the blade tip
Blanking trolley	Drawer type unloading car

Advantages
1 The whole 8mm plate welding bed, mortise and tenon structure,
2 Bed 1-3kw built-in laser, cold water machine external.
3 Partition dust removal optional, standard without partition dust removal
4 Anti-burn optional, standard without anti-burn components.
5 Standard with front electric box, optional independent electric box.
6 With 200 air ducts on both sides, increase the effect of pumping air.
Sample

Factory
Jinan Lingxiu Laser is established in July 2004 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines, passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than 30 manufactures.

Our Customers
Offline Activity
After-sales Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after I receive or I have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's business travelling ticket / room and board/ 100 USD per day.

---
