Product Description
Product Description
Product Description

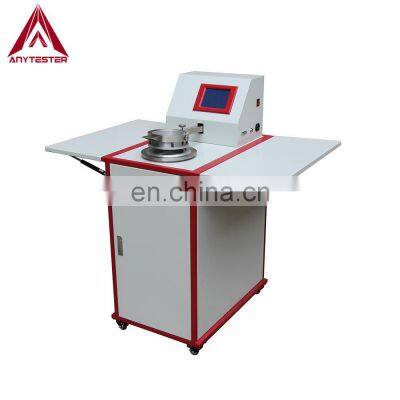

HY0461D Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.
Standard
ISO 9237, 7231, 5636
| ASTM D737
| BS 5636
|
DIN 53887
| JIS L1096
| GB/T 5453, 13764
|
Note: For more standards, please contact us
|
|
|
Specification
Model
| HY0461D
|
Perforated plate
| Manual
|
Measuring range
| 0.1~12000mm/s(L/m2.s)
|
Units
| mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s
|
Measuring accuracy
| ≤±2%
|
Test pressure
| 1 ~ 4000Pa
|
Test area/test rig
| 20cm2 (5cm2, 20cm2(≈Φ50mm), 25cm2, 38cm2(≈Φ70mm),
50cm2, 100cm2 optional)
|
Perforated plate
| Φ0.8mm, Φ1.2mm, Φ2.0mm, Φ3.0mm, Φ4.0mm, Φ6.0mm,
Φ8.0mm, Φ10.0mm, Φ12.0mm, Φ16.0mm, Φ20.0mm
|
Specimen thickness
| ≤12mm
|
Power supply
| AC220V±10%, 50Hz
|
Power
| 2KW
|
Dimensions
| 1070×670×1080mm
|
Weight
| 75kg
|
Details & Features
★ Touch screen control, LCD display★ Professional software on PC for online operate★ Adopt high precision low pressure difference sensor, more accurate★ Easy to operate, no need to cut sample
★ Provided with 11 pcs of perforated plate to determine different textile
★ 7 units selectable, mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s★ Several test heads can be selected, the standard configuration is 20m2
★ Chinese and English display language selectable★ Modified mechanical process, it’s more beautiful and durable.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
