Product Description
Product Description
Specifications
Sampling method
| Natural diffusion
|
Sensor type
| Electrochemical sensor
|
Display deviation
| O2
| CO
| H2S
|
±2%F.S.
| Absolute:±5ppm
Relative:±10%
| Absolute:±2ppm
Relative:±10%
|
Alarm signal
| Audible, visual, and vibrative
|
Alarm sound
| ≥80dB @ 1m
|
Communication method
| Wireless(infrared commuication with host computer)
|
Parameter setting, log storage and export functions
| Parameter setting, log storage and export functions
|
Indication method
| LCD screen: show real-time data and system status.
Backlight: illuminates on command or alarm status in low light.
|
Ambient condition
| Temperature: -20℃～50℃
Humidity: ＜95%RH (no condensation)
Pressure: 90-110Kpa
|
Power source
| Lithium battery DC3.6V, 1200mAh
|
Sensor lifespan
| 2 years (2 minutes of alarm per day)
|
Ingress protection
| ≥IP66
|
Approval
| ATEX II 1G Ex iaⅡC T4 Ga
IECEx Ex ia IIC T4 Ga
|
Explosion-proof type
| Intrinsically safe
|
Dimension
| 61.5mm×52.8mm×27mm
|
Weight
| About 85g
|
Product Key features
The smallest detector from China (palm size)
2-year disposable gas detector
Low-consumption 16-bit MCU to ensure long battery life
Wide viewing-angle graphic LCD display
Configurable high and low alarm points, two levels of alarm
Battery low voltage alert
Automatic calibration to reduce detection error
Data upload function (Bluetooth)
STEL and TWA alarms for toxic gases
Automatic self-test function after power-on
ATEX and IECEx approved
Description

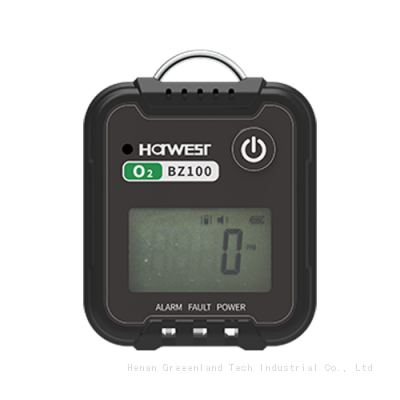

BZ100N single gas detector that can detect the concentration of CO, H2S and O2 in the ambient air. With ultra-low-consumption and lightweight design, it is the smallest detector from China, only the size of a palm. It is suitable for petroleum, chemical, metallurgy, mining, underground pipeline, tunnel and other industries.
Company Advantage
Certificates CE ATEX
More than 15 years export experience
Prices 5% lower than other brand
Fast delivery Parts of products are available in stock and can send within 3 working days
After-sales Service
All the products have 1 year warranty, and it will be free from maintenance within warranty period, products over warranty period for paid services.
BZ100 portable single gas detector is supplied by Greenland and Tech, it can detect combustible gases, oxygen, and toxic gases etc.
If you need portable single gas detector, please contact us.
>>
