Xianda CNC Column Granite Marble Profile Cutting Diamond Wire Cutting Machine /Wire Saw Rope Machine

Product Description

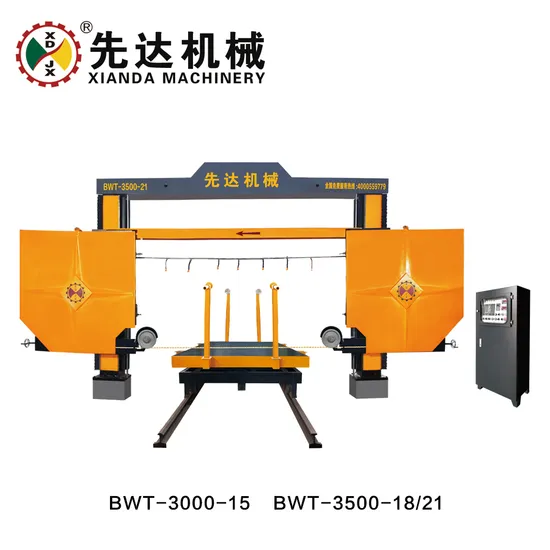

Mono Diamond Wire Saw Block Dressing Machine BWT-3500
BWT-3500 block dressing machine adopts PLC control, lifting structure use 16 surfaces slideway. 28pcs rolling wheels structure. And synchronous lifting through intermediate drive makes its cutting stable, high efficiency. It can dress four surface of block as worktable with 360 rotating.It's the ideal equipment for block cutting to slice and block dressing. Technical Parameter

Parameter	Unit	BWT-3000-15	BWT-3500-18	BWT-3500-21
Max processing size	mm	3000*3000*1500	3500*3000*1800	3500*3500*2100
Dimension of worktable	mm	1600*2000	1800*2000	2000*2500
Main motor	kw	11	11	15
Table bearing weight	T	20	35	50
Wire speed	m/s	0-40	0-40	0-40
Gross motor	kw			19
Outline dimension	mm	8800*5500*4100	9300*5900*4800	9800*6800*5600
Gross weight	kg	7200	9000	10700
Water consumption	m³/h	6	6	6
