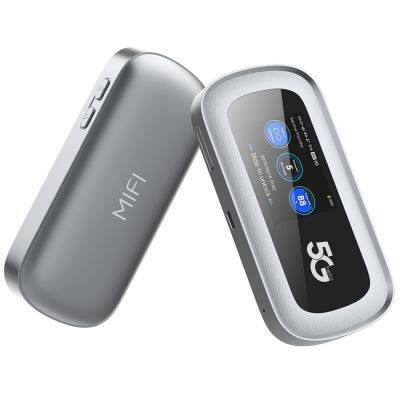

| Description | AX1800 touch panel 2.4' TFT LCD 5g portable router |
| Item no. | HY82H |
| CPU | MT6877 2*A78 (2.4GHz)+6*A55 (2.0GHz), GPU: Mali OTR MC4 |
| Memory | LPDDR4X 2GB RAM+EMMC 8GB ROM |
| WiFi chipset | MT6635 |
| Bluetooth | Bluetooth 5.1 |
| OS Version | Android 11 |
| LCD | 2.4' TFT MIPI（LCD or LED） |
| Touch panel | Support |
| LED indicator | 1*5G signal, 1*4G signal, 1*Wifi, 1*Power |
| Protocol | 3GPP Rel.15, 5G NR, SA/NSA, Sub 6G/LTE Category 18 |
| Frequency | 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 4G: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43 3G: B1/B5/B8 |
| 5G NR: n2/n5/n12/n25/n66/n41/n48*/n71*/n77/n78 4G: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71 | |
| 5G NR: n2/n5/n12/n25/n66/n41/n48*/n71*/n77/n78 4G: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42*/B43*/B48*/B66/B71 3G: B2/B4/B5 | |
| CA/ENDC | Support mainstream 2CC LTE+1CC NR ENDC combination, as well as LTE 2CA and partial 2CA NR |
| Throughput | NR：Downlink/Uplink up to 2.77Gbps/1.25Gbps LTE：Downlink/Uplink up to 1.2Gbps/150Mbps WCDMA：Downlink/Uplink up to 42.2Mbps/11.5Mbps |
| Antenna | 4*4 MIMO |
| Wifi band | 2.4G&5.8G |
| WiFi Protocol | 802.11a/b/g/n/ac/ax |
| WiFi speed | 802.11a：Up to 54Mbps 802.11b：Up to 11Mbps 802.11g：Up to 54Mbps 802.11n：Up to 300Mbps 802.11ac: Up to 866Mbps 802.11ax: Up to 1201Mbps |
| Wifi antenna | 2*2 |
| WiFi users | 16 |
| SIM card | Single SIM card, eSIM optional, hot plugging supported |
| Button | 1*Power + 1*MENU |
| USB | TYPE-C USB3.0(testing port) |
| Charge | TYPE-C, 5V/2A, 5V/3A, 9V/2A |
| Polymer battery | 4400 mAh |
| Size | Unit size: 125x70x17mm, N.W.: 130g Box size: 163*114*53mm, G.W.: 280g |
| Environment | Operating Temperature：-20℃～+50℃ Storage Temperature:-40℃～+70℃ Humidity：5％～95％（Non condensation） |
