Basic Info.
Type
Industrial Aluminium Profile
Window & Door Aluminium Profile
60 Series
Surface Finishing
Anodic Oxidation
Polished Aluminum Profile
Mechanical Polishing
Color
Sliver/Black/Custom
Transport Package
Exoport Packing or According Requirement
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 50.00cm
Package Gross Weight
10.000kg
Product Description
Product Description T-slot aluminum profile
PG40 T-slot aluminum profile is recommended for applications with high loads, such as heavy work stations, fixtures, machine supporting structures, transporting shuttles etc. The optimized load-carrying capacity of 40 dimension offers a cost effective and stable solution for design engineers. Areas of the basic frame designed which are subject to less load can be constructed from light dimensions for optimized weight and cost.
2 series modular dimensions 40 in stock:
-Strut profiles slot 8 with decorative molding on surface
-Strut profiles slot 10 with satin surface treatment. This series is designed with 10.2mm slots for applications with extremely strong connections.
| Series | Modular Assembly System |
| Profile Group | PG 40 |
| Material | 6063-T5 |
| Surface Treatment | Anodized (none for section) |
| Effective Length | 6000mm |
| | A long frame (~ 6000 mm) can also be customized. |
| Color | Silver/ Customized |
Product Introduction
| T Slot | Cross
Section | Core
Hole | Slot Width | Slot
Depth | Wall
Thickness | Profile Group |
| (mm) | (Ø) | (mm) | (mm) | (mm) |
| | 12 | 8.2 | 11.5 | 3 | PG 40 |
Dimensions of PG 40 series
| Description | Moment
of
Inertia
lx(cm4) | Moment
of
Inertia
ly(cm4) | Moment
of
Resistance
Wx(cm3) | Moment
of
Resistance
Wy(cm3) | Mass
(kg/m) | Part No. |
| 40x40, 2 slots, Type A | 7.20 | 7.10 | 2.70 | 2.40 | 1.30 | 40.1.040040.02.01 |
| 40x40, 2 slots, Type B | 7.40 | 7.00 | 3.70 | 3.50 | 1.30 | 40.1.040040.02.02 |
| 40x40, 2 slots, R90 | 7.50 | 7.50 | 3.80 | 3.80 | 1.45 | 40.1.040040.02.90 |
| 40x40, 4 slots | 8.70 | 8.70 | 4.40 | 4.40 | 1.45 | 40.1.040040.04.01 |
| 40x40, 4 slots, Heavy | 10.40 | 10.40 | 5.20 | 5.20 | 1.85 | 40.1.040040.04.02 |
| 40x60, 4 slots | 12.80 | 25.90 | 6.40 | 8.60 | 2.15 | 40.1.040060.04.01 |
| 40x80, 6 slots | 16.00 | 58.00 | 8.00 | 14.50 | 2.50 | 40.1.040080.06.01 |
| 40x80, 6 slots, Heavy | 18.20 | 71.50 | 9.10 | 17.90 | 3.10 | 40.1.040080.06.02 |
| 40x120, 8 slots, Heavy | 26.00 | 219.00 | 13.00 | 36.50 | 4.50 | 40.1.040120.08.02 |
| 40x160, 10 slots, Heavy | 34.00 | 488.70 | 17.00 | 61.10 | 5.55 | 40.1.040160.10.02 |
| 80x80, 8 slots | 100.60 | 100.60 | 25.20 | 25.20 | 3.90 | 40.1.080080.08.01 |
| 80x80, 8 slots, Heavy | 126.30 | 126.30 | 31.60 | 31.60 | 5.10 | 40.1.080080.08.02 |

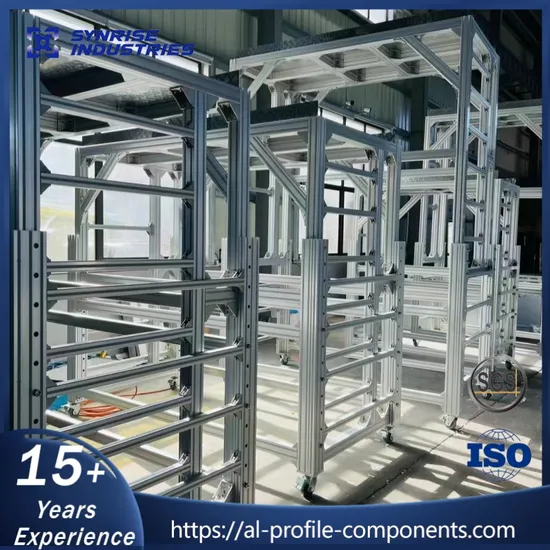

Application Flexibility and easy operation of assembly technology makes it possible for the factories to adapt to the rapidly changing environment and requirement.
Based on these features, We offers a comprehensive modular assembly system consist of aluminum profiles, connectors, fasteners and accessories.
With this integrated system, your requirements for upgrading production processes could be easily and fully met - from a simply assembled frame, material shuttle and storage rack through to machine guarding, protective devices, workbench and any imaginable profile applications. Company Profile
>>
