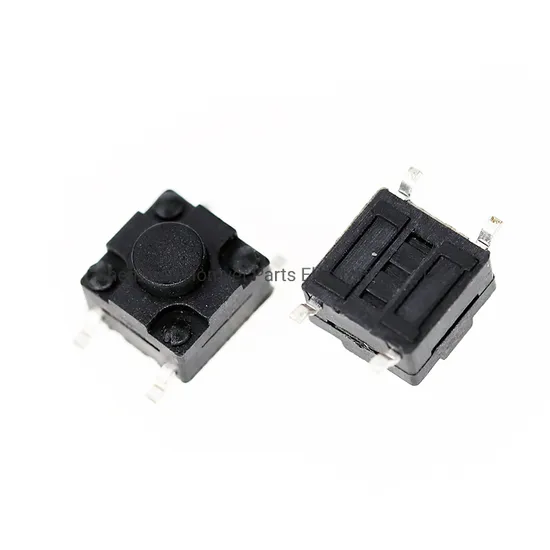

SMT Washable Tact Switch 6X6 mm Electronic Components

Product Description

TACT SWITCH
1,100% brand new and high quality.
2, Easy to install and use.
3, Easy structure, mini body,
4, Widely used to control operation of many power electronic projects, Tact switch (commonly referred to as tactile switch) can be found on almost all computing appliances
Soldering temperature: 350ºC Max.
Continuous soldering time: 5 s Max.
Preheat -------------- 150ºC ~ 175ºC, 40 ~ 80 sec
Peak temperature ----- 260ºC (max)
Soldering area temperature ------ 260ºC, 1 ~ 4 sec, 2 times (max)
Product Parameters

Product Name:	Tact Switch Serise
Rating:	DC 12V 50mA Max
Contact Resistance:	≤100mΩ
Insulation Resistance:	≥100MΩ
Operating Temperature:	-20ºC~+70ºC
Travel:	0.2±0.1mm; 0.25±0.1mm and etc.
Operating Force:	100gf±50gf, 130gf±50gf, 160gf±50gf, 180gf±50gf, 200gf±50gf, 250gf±50gf
Compressive Strength:	100V AC for 50Hz/1min
Lifetime:	50,000cycles or 100,000cycels
Material:	NYLON/PBT/LCP/PA66/Copper
MOQ:	1000Pcs
Packing:	Bag Packing or Reel&tape Packing

FAQ
Q: Are your a trading company or factory?A: We are the manufacturer, we establish in 2008, have more than 10 years experiences in this field. Q: Do you provide samples?A: Yes,we could offer the sample for free charge but do not pay the cost of freight.Q: What is the MOQ for your products ?A: The MOQ of most of our product is 1000pcs
Q: Do you provide customized services?A: Yes,we support OEM/ODM service. Q: When will you ship the goods out if i send payment now?A: Usually,our lead time is 7 days after payment recevied.Q: Is there quality control on all production lines?A: Yes, all production lines have adequate quality control.Q: What is your terms of payment?A: We accept Multiple payment methods such us T/T in advance,Paypal, L/C and so on.
Q: How do you arrange the shipment?A: We can provide multiple modes of transportation, such as by express(DHL,FedEx,UPS,TNT etc), by sea and by air.
Q: What is your after-sales service?
A: We provide return and exchange service for quality problems caused by non-human factors, and we will pay the freight. We assist in solving any product technical problems throughout the process.

---
