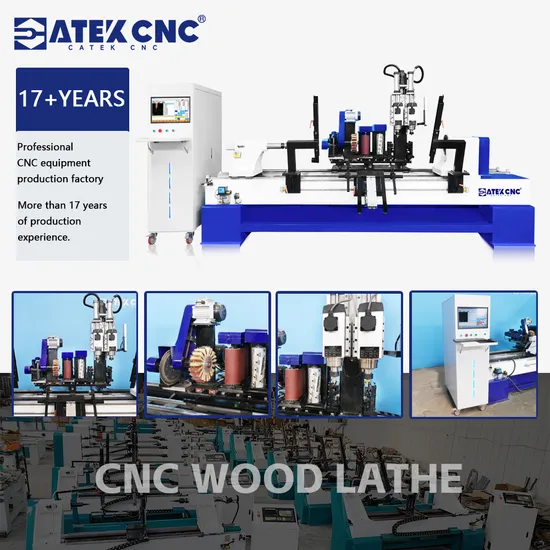

Ck-1530-8t Woodworking Stairs Legs Multi-Cylinder Linkage Automatic Feeding CNC Wood Lathe Machine Factory Price

Product Description

Product Description

Product Parameters

Processing Size	1500mm length*300mm diameter
Bed Frame	Heavy-duty integral fully cast lathe, independent control cabinet
Motor	4KW servo rotating motor
Drive Mode	DORNA servo driver
Frequency Converter/ Inverter	BEST inverter/servo inverter
Spindle Speed Speed of Spindle	0-6000r/m
Transfer method Transmission way	The XY axis is driven by 25TBI ball screw, and the Z axis uses a high-precision helical rack or 32 screw
Milling Spindle	3.5kw high-speed air-cooled spindle(Support four-axis four linkage)
Milling Spindle Speed	0-18000r/min
Planer Knife	Length 240mm, diameter 90mm, 30 big blade
Grinding Wheel	independent motor control,230 mm diameter
Slideway	Taiwan Hiwin High Precision 25 Straight Line Square Rail
Device cable	pure copper cable
Control System	CATEK CNC special control system panel, CK1000TC
Lubrication system	Oil filling and maintenance system
Operating Voltage	AC380V/220V 50/60Hz
Compatible software	Artcam, type3, CAD drawing, CDR, solidworks UG powermill, etc.
Engraving instructions	Standard G code, u00, mmg, plt
Loading and unloading device	Multi-linkage cylinder loading rack (simple and easy to use)
Security system	All photoelectric limits of XYZ three-axis
Repeatability X,Y,Z Traveling Positioning Accuracy	±0.02mm
Toolbox	Turning tools, wrenches, collets, handwheels, thimbles, chucks, oil bottles, oil-water separators, relays, photoelectric limits, etc.

SAMPLE DISPLAY
V-type turning tool, right-angle tool, saw blade, grinding wheel, The self-developed control system for CNC lathes
grinding roller, planer, milling spindle, automatic feeding (optional) uses international standard G code, is easy to
operate, and supports various advanced functions.
Using imported HIWIN high-precision linear guides, flange sliders, External pulse handwheel control makes tool
and TBI high-precision ball screws, the operating accuracy is higher. setting more convenient and easier to operate.
The spindle box is cast with black cast iron &equipped with a The fully cast headstock is equipped with Morse
four-bearing spindle, which makes the rotation more stable and swivel thimble and standard stroke cylinder, making
the processing more powerful. it easier to fix wood and more convenient to use.

Use an independent control chassis to connect & control the The whole machine adopts super strong fully cast
machine, which has strong anti-interference ability and can side-by-side heavy-duty double bed, the machine weight
cope with various complex environments. is more than 3000kgs, the processing & use are more stable

4KW pure copper coil with servo high-speed rotating motor, supporting Ordinary three-phase asynchronous motor with a maximum speed of 2880R/M,
position mode and speed mode switching, capable of rotating angles with using gear to control the angle with slow speed and low accuracy
a maximum speed of 6000R/M, high accuracy and fast speed
All adopt DORNA closed-loop servo motors with high torque, accurate Using ordinary motors with low torque, slow speed, low accuracy and prone to
positioning high accuracy and fast speed. errors
The whole lathe uses a heavy-duty integral fully cast bed body which is cast Using ordinary square iron pipes to weld the bed body has the advantages of
at high temperature. The bed body has higher toughness and more stable light weight, machining vibration, easy deformation, detachment from welding,
structure. Improve the effectiveness and efficiency of processed products. poor product processing effect and low efficiency.
Using an intelligent CNC system with a 7-inch large screen and high Old style switch button control with no screen, complex operation and
visualization degree, controllable accuracy of 0.01MM, simple operation and requiring cooperation from technical personnel, low automation level which is
single person can operate multiple machines, improving efficiency and inability to fully automate processing, low efficiency, and waste of labor.
saving labor. Company Profile
Jinan Catek CNC Machinery Co., Ltd Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.
The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry. Packaging & Shipping
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.

---
