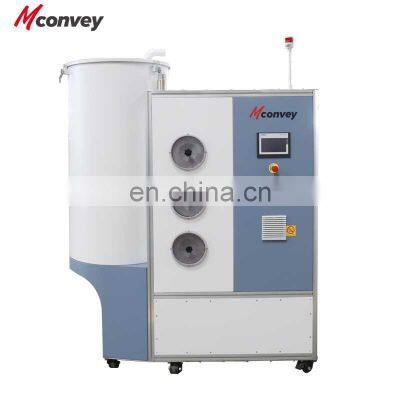

304 Stainless Steel Industrial plastic material dehumidifier hopper dryer

Product Description

Product Description
Features:* Integrating two functions of dehumidification and drying;* Using a full molecular sieve honeycomb rotor, which can provide stable dry air with a low dew point;* The feeding system is equipped with a cut-off material distribution station to ensure that there is no residual material in the material pipe;* PLC control, and touch screen display for precise control of drying temperature.Working principle:The hot and humid air returned from the drying bucket is cooled and blown into the honeycomb rotor. The moisture in the air is absorbed by the rotor and then desorbed by the regenerated heated air. The two air flows act on the rotor at the same time. As the rotor rotates, the moisture in the air is continuously absorbed and desorbed for discharge, and finally air with a stable low dew point is formed, which is heated to the drying temperature required by the plastic material and then blown into the drying bucket to form a closed circulation loop.Specification table:ModelDry air flow rate (m3/hr)Drying bucket capacity (L)Drying fan (kw)Regenerative fan (kw)Regenerative electric heater (kw)Electric drying heater (kw)Conveying tube(inch )LSDD-400H/600L40060040.78183"LSDD-700H/900L7009005.51.612184"LSDD-700H/120070012005.51.612244"LSDD-1000H/2000L100020007.5315365"LSDD-2000H/3000L2000300011424486"LSDD-2000H/4000L2000400011424606"LSDD-3000H/6000L30060007.5*23*224*2968"LSDD-4000H/6000L4000600011*23*224*2968"LSDD-4000H/8000L4000800011*23*224*21208"Product Display

---
