US$260.00-334.00
|
30 Pieces
(MOQ)
|
Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Horizontal Axis
Certification
CE, EMC,Euro V
Rated Power
7.0HP (5.0kw)/3600 Rpm
Working Width
800-1100 (mm)
Gear Shifting
2 Forward , 1 Reverse
Engineengine Type
Ohv,25°tilt,Single Cylinder, 4-Stroke
Starting System
Recoil Start
Max Power
7.5HP (5.5kw)/3600 Rpm
Working Depth
100-300 (mm)
Gearbox
Cast-Iron Gearbox
Specification
77 cm x 44 cm x 87 cm
Production Capacity
50000 PCS/Year
Product Description

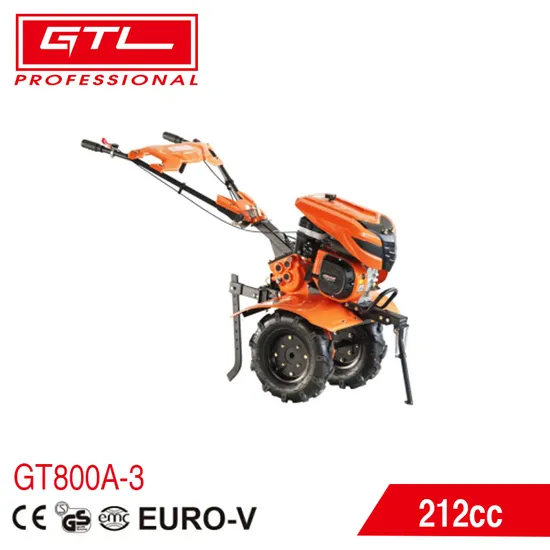

7.5HP 4 Stroke 212cc Agricultural Gasoline / Petrol Power Tillers Garden Rotavator Gasoline / Petrol Rotary Cultivator Tiller with Cast-Iron Gearbox (GT800A-3)
Product information
| Item No. | GT800A-3 |
| Engine Model | 170F |
| Engine Type | OHV,25°Tilt,single cylinder,
forced air cooling,4-stroke |
| Displacement | 212CC |
| Bore x stroke | 70*55mm |
| Fuel tank capacity | 3.6L |
| Starting System | Recoil Start |
| Rated Power: | 7.0HP (5.0KW)/3600 RPM |
| Max Power | 7.5HP (5.5KW)/3600 RPM |
| Working width: | 800-1100 (mm) |
| Working depth: | 100-300 (mm) |
| Gear Shifting: | 2 Forward , 1 Reverse |
| Blades Type: | 24 Pcs/4Pcs×3(2+1)Groups (Z065) |
| Gearbox: | cast-iron GEARBOX |
| Pulley | Double pulley |
| Transmission | Belt |
| Transmission oil capacity | 0.95 L ( transmission) / 0.6 L (engine) |
| Wheel | One pair of 400-8 wheels |
| Certification | CE, EMC,EURO V |
Product picture
Optional Spare Parts
APPLICATION SCENARIOS..................................................................................................
Product advantage
1.Simple - easy to use engagement levers and simple recoil starting
2.Smooth - Soil finishes with table-like smoothness
3.Dependable - Gear drive transmission, forged tines, and 7.5HP 4 cycle engine
4.Stable - Low center of gravity and rear mounted tines for easy control and stability in the row
It is the perfect tool for pre-planting ground preparation, as well as many other tasks during the gardening season, such as cultivating between garden rows. With a heavy-duty gearbox, fingertip throttle control and a clutch handle, it provides a consistent transmission of power to tines under varying soil conditions.
