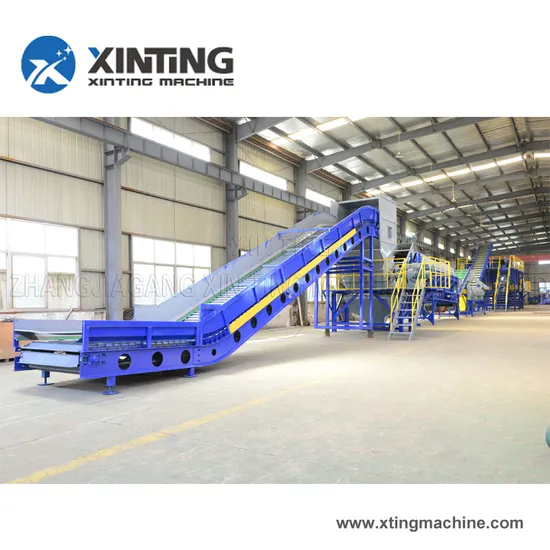

B to B Grade Pet Bottle Washing Line (TL3000)

Product Description

B to B Grade Pet Bottle Washing Line (TL3000)
Main Technical Parameter of PET bottle flakes washing plant:
Nowadays, our PET washing line have been exported to many countries & regions, e. G. Latin-America, Mideast, Russia & MID-Asia, Africa, etc.

Product capacity	300kg /h	500kg /h	1000kg /h	1500kg /h	2000kg/h	3000kg/h
Workshop(L*W*H)	40m *5m*6m	42m *5m*6m	70m *6m*6m	105m *6m*6m	125m*6m*6.5m	130*7m*7m
Needed worker	3-4 persons	5-6persons	7-8persons	10-12persons	12-18persons	15-25persons
Water supply (recycle use)	2-3ton/h	3-5ton/h	5-8ton/h	6-12ton/h	10-15ton/h	12-20ton/h
Final product quality	Moisture: max 1% Bulk density: 0.3G/CM 3 Particle size: 6-16mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm

PET Flakes Quality Standard Reference Table

Moisture(%)	<0.7	Label (ppm)	<15
PVC (ppm)	<10	Inorganic Compounds (ppm)	<10
Glue (ppm)	<10	PH	7.5±0.5
PP/PE (ppm)	<15	Total Impurity (ppm)	<100
Metal (ppm)	<10	Flakes Size (mm)	≤12mm

Estimated Plant Parameters

Capacity (kg/h)	Installation Power(kw)	Required Area(m²)	Manpower	Steam Consumption(kg/h) (kg/h)	Compressed air (m²/min)	Water consumption(m³/h)
500	300	600	4	280	1.5	0.75
1500	600	800	5	700	3.5	2.25
3000	900	1200	7	1300	6.5	4.5
6000	1000	2000	11	2300	12	9

Production Consumption Table

No.	Item	Average Energy Consumption per ton Flakes
		TL-6000	TL-3000	TL-1500	T-500
1	Electricity consumption (KWH)	150	160	170	180
2	Steam (kg)	450	500	550	650
3	Washing Detergent (kg)	12	12	12	14
4	Water consumption (ton)	1.5	1.5	1.5	1.5

Ability
Thanks to innovative washing technology and high quality performance. We removes the most difficult contaminants from PP/PE/PS/ABS plastic materials. Cleans post consumer film, agricultural film, Rigid bottle/drum, Battery case, XINTING plastic and even heavily contaminated woven bag fibre material. Provides almost 100% purity washing results.

Stability
We are available for 24 hours working non-stop operation. Optimized design and top brand components to each module. Which could minimize the downtime ratio and save the maintenance time. This ensures the maximum availability and highest productivity for user.
Efficiency
We are designed in all details for efficiency improving. The modular design could simplifies the planning and accelerates the implementation. The system have very low consumption values for electricity, water and chemicals. The operating costs and maintenance costs are absolutely reduced. Consistently the lowest investment costs and highest value creation!
Modularity
All elements required by any customer for different application could be combined freely. This design reduces planning, construction and assembly time effectively. And it's possible to adjust the system with regard to technological modification and market changing. This makes the investment future-proofing!

Intelligent control
Intelligent automatic module control of Xinting Machinery. One Main control panel with modern Touch Display for efficient interaction of all component. Multi-language available for operating system.
Turnkey service
XINTING is a flexible and customer-oriented recycling solution. The proposal is integrated and engineering project. Building design, overseas installation, commissioning and training are available. Machine warranty with spares in stocking and in-time delivery. Consistently quick and careful service in pre-sales and after-sales process.
recycled PET plastic bottles, firstly to remove the labels for label remover machine, and then go though selecting table to select different color bottles( for example, green bottles,bule bottles or other PC ,HDPE bottles etc. then go to crusher to crush , when the material come out ,then go to floating washer , to separate PET bottles with PP labels ,cups. After separating, it will go to high degree temperature hot washer boil to hot washing, then go to cold floating washer again (to remove the detergent from hot washer, then dewatering ,package.
For the different capacity ,high level bottle flakes, we can design the new plan as your requirement.

---
