Basic Info.
Specification
760mmX780X790mm

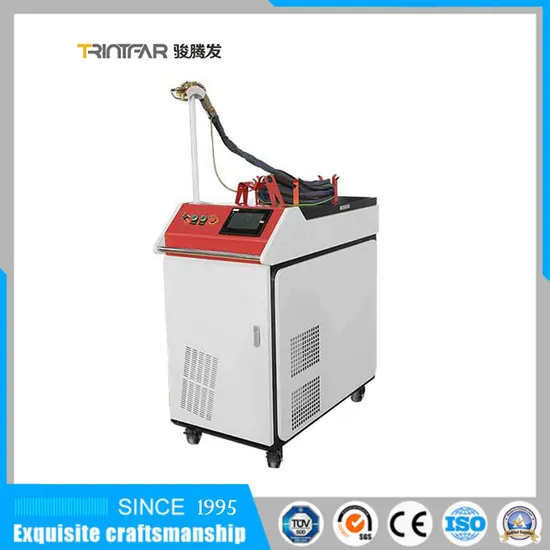

Product Description
1. Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning, and high-frequency ultrasonic cleaning, laser cleaning machines have obvious advantages. Wide range of applications: Laser cleaning can remove various types of contaminants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning. It can also selectively clean the contaminants on the surface of the material without damaging the surface of the material.
2. Easy to operate: The laser can be transmitted through optical fiber, cooperate with the robot to realize long-distance operation, and can clean complex structures that are not easily reached by traditional methods. This feature also makes the safety of operators more secure in some dangerous places.
3. High cleaning efficiency: The cleaning efficiency of the laser cleaning machine is very high, and the laser cleaning is non-grinding, non-contact, and non-thermal. It will not produce mechanical force on the object to be cleaned, and will not cause damage to the surface of the object to be cleaned. Moreover, it does not need to use any chemicals and cleaning fluid when cleaning, and it will not pollute the environment. Green and environmental protection: No chemical agents and cleaning fluids are required. The cleaned waste is basically solid powder, small in size, easy to store, recyclable, no photochemical reaction, and no pollution.
4.Low cost: The initial investment of the laser cleaning system is relatively high, but it can be used stably for a long time, with a service life of up to 10 years, low operating cost, fast speed, high efficiency, time saving, and a return on investment soon. In the long run, The cost is lower than traditional cleaning methods. Wuhan Ruifeng Optoelectronics laser equipment is cost-effective. With years of laser research and development experience, the product technology is mature and the product performance is safe and stable. Jun Tengfa always adheres to the attitude of "quality first, service second, price third" to provide customers with the highest quality products and services.
Equipment model
| GX-50W
| GX-100W
| GX-200W
| GX-350W
| GX-500
| GX-1000
|
Laser working medium
| Yb-doped fiber
|
Laser power
| 50W
| 100W
| 200W
| 350W
| 500W
| 1000W
|
Laser wavelength
| 1064nm
|
Pulse frequency
| 20-100KHz
| 20-100KHz
| 20-200KHz
| 20-50KHz
| 20-50KHz
| 20-50KHz
|
Cooling method
| Air cooling
| Air cooling
| Air/Water cooling
| Water cooling
|
Dimension
| 700x1250x1030mm (About)
|
Total Weight
| 50kg
| 150kg
| 175kg
| 175kg(Including Water tank)
| 200kg(Including Water tank)
| 200kg(Including Water tank)
|
Total power
| 350W
| 600W
| 1000W
| 1400W
| 1800W
| 2000W
|
Scan width
| 10-60mm
|
Optional
| Hand/automatic
|
Working temperature
| 5-40ÂșC
|
Q Are you a trading company or a factory? A We are an integrated industry and trade, and have our own factory. Q Where is your factory located? A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo. Q Can you customize the machine? A We support OEM/ODM service and can customize the machine according to your requirements. Q What is the MOQ? A According to the customer's requirements. Q What are your services during the purchase process? A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services. On-sales: Technical training, Installation and commissioning services. After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance. Q How long is your warranty period? A We offer a one-year warranty. Q What is the payment terms? A We ship with full payment, and we can negotiate payment terms. Q How long is the delivery time? A Delivery time for standard machines: 7-15 working days Delivery time for customized machines: According to the degree of customization, about 1-3 months Q Can you provide samples? A We provide sampling service, but you need to send us the sample by courier.
>>
