Conveyor Belt Ply Separator

Product Description

The PO130 Conveyor belt ply separator is used to separate between the plies of a conveyor belt.This cutting action is often required in preparation before splicing a PU PVC belt thickness more than 4mm ,this machine will be needed to help joint the belt with more strength.It is an ecnomic choise compare with PN130 conveyor belt Ply separator.
★Features
1.Good performation on normal conveyor belt
2.Economic practicality
3.Belts can be divided into two layers,three layers etc.
4.Layered thickness accuracy can reach 1.5mm
5.Hard alloy steel layering blade,hard alloy steel knife controller.
6.Positive inversion control box switch to control positive inversion control box
7.Easy operation.The foot switch is below with positive and negative ratary knobs on it.
★Technical Datashee

Model	PO-130
Max.Splitting Depth	130mm
Max.Thickness	10mm
Min. Thickness	Around 1mm
Motor Power	1.2kw
Voltage	380v / 3PH (can be customized by request)
Net Machine Weight	65kg
Gross Weight	72kg
Machine Overall Dimension	620*460*320mm (Length*Width*Height)
Packing Overall Dimension	750*580*430mm(Length*Width*Height)

★Machine Detail

Blade and Roller
Reducer
Power Switch	Foot Switch
Roller Adjustment device

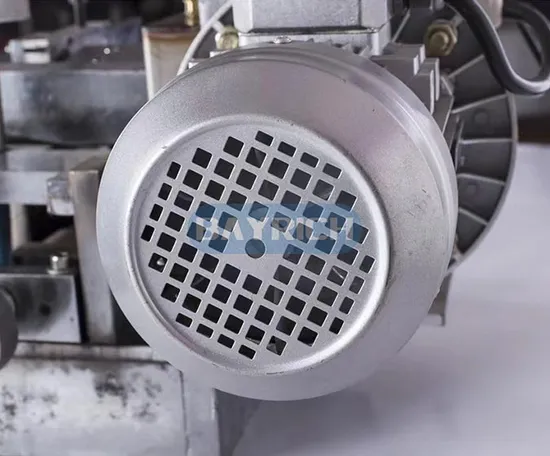

Depth Adjustment	Motor

---
