Foam Thermoforming Machine for PS Material Production and Packaging

Product Description

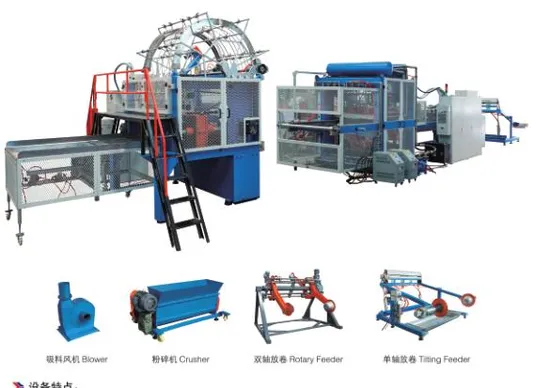

ps foam automatic Thermoforming machine
It including the main forming machine also with the cutting machine
Machine Features:-With large forming&trim area, high production efficiency and max. forming speed within 2sec/cycle.
-High clamping force 60Tons to make high quality products, suitable for vacuum forming,press forming and
vacuum pressing process.
-Trimming press with automatic sheet feeding, position detecting, counting and stacking.
-Applies to different materials of sheets:EPS/PVC/PP/BOPS/HIPS/PLA/PET,etc.
-The whole unit adopts high precision servo systems, human-computer interface and PLC control, to gain automatic management.
-In-line crusher, crushed material can be transported to plastic recycle machine or appointed location

Model parameters HLRCH-1100/1300 HLZCZ-1100
Max Forming area 1120x1295mm2 (44''x51'')
Max Forming depth 127mm(5'')
Mould clamp force 60T
Dry Speed 30cycles/min
Oven Length 5300 mm
installed power 330 KW
installed size (LXWXH) 14x2.2x2.5m
Weight 11T
Max Efficiency cutting area: 1120x400mm2
Max Cutting height : 130mm
Max cutting force: 35t
Dry speed: 150 cycles
Installed power : 22kw
Installed size (LXWXH): 5X4.5X3.5M
Weight:8t

---
